Orange Bat Platform Comparison

Orange Bat vs Orange Bat QC

Same proven dual-spindle foundation, updated for faster setup, cleaner bit management, and Quick Connect accessories.

Orange Bat Original lightweight design

Orange Bat QC Generation 2 workflow

Shared Compact 6-inch suction pad

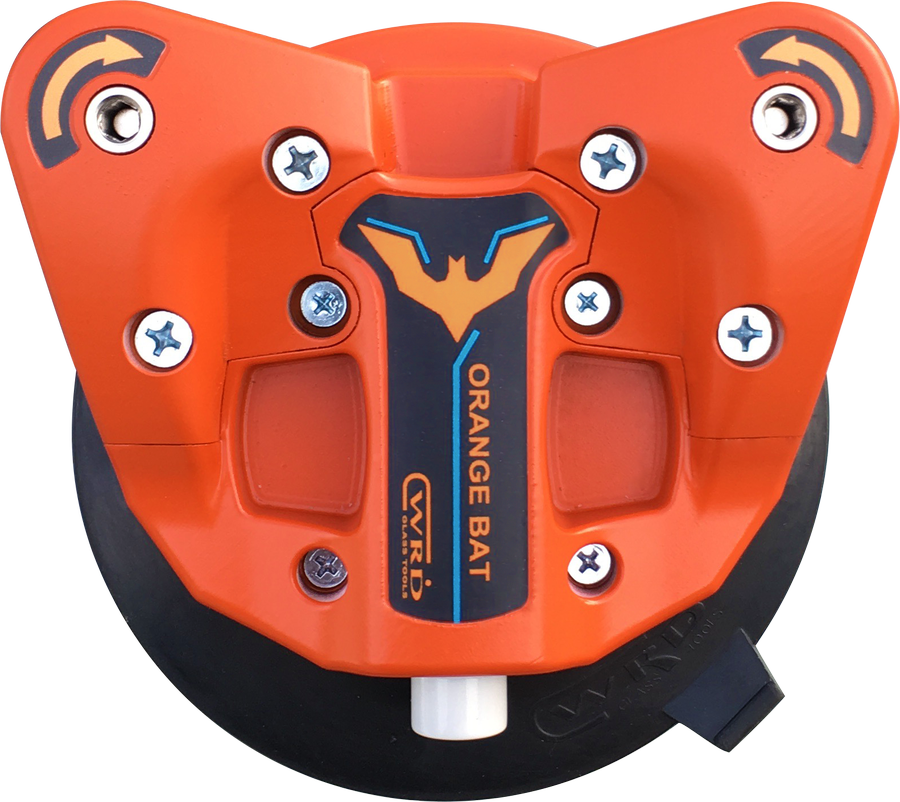

Original Model Orange Bat

Compact profile, 1/4-inch drive, and classic setup workflow.

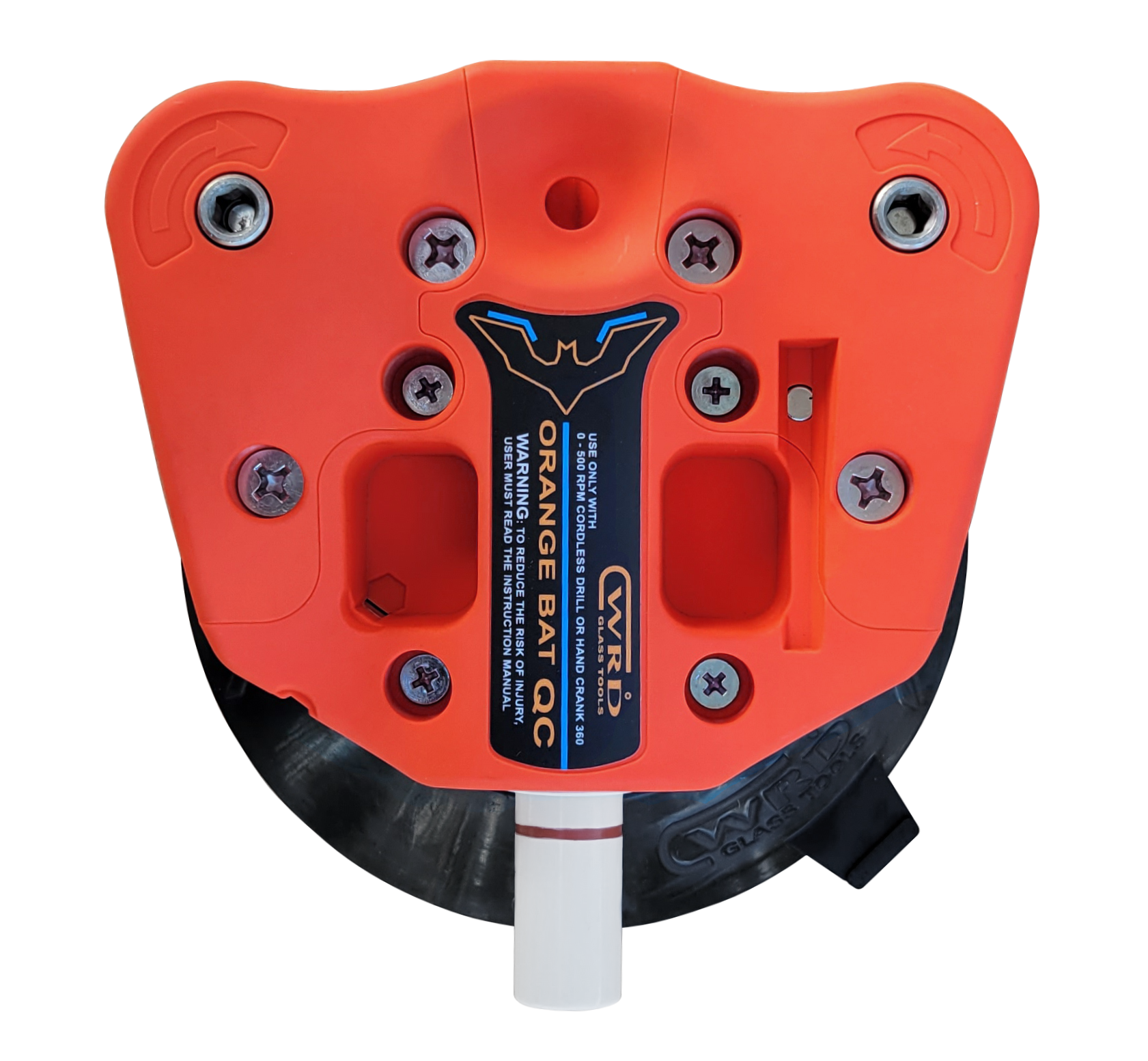

Generation 2 Orange Bat QC

Quick Connect accessory port, reinforced body, and magnetic bit storage.

Orange Bat

Original Model

Proven dual-spindle fiber line system
Compact low-profile design
Lightweight original frame
Enclosed metal components
Drill or hand crank operation

Orange Bat QC

Generation 2

Quick Connect accessory port
Reinforced tool body
Magnetic bit storage
Improved access and working angles

What's New in the Orange Bat Quick Connect

1 Quick Connect Accessory Port

Quick Connect Ecosystem

Orange Bat: Does not feature an accessory port. Technicians must manually thread and secure line guides and pumps, which takes longer during multi-stage setups.

Orange Bat QC: Integrates the Quick Connect accessory port directly into the front of the body. This supports tool-free, instant swaps of WRD accessories.

Orange Bat: Requires manual accessory threading and alignment
Orange Bat QC: Tool-free, instant accessory attachment swaps
Both platforms use the same high-strength fiber lines

Orange Bat QC Reinforced Body Construction

2 Reinforced Tool Body

Chassis Durability

Orange Bat: Built around the original, lightweight chassis structure weighing 0.65 kg (1.44 lb), perfect for fast mobile work.

Orange Bat QC: Upgraded with a reinforced structural body weighing 0.692 kg (1.52 lb) to better withstand the stresses of high-volume shop usage.

Orange Bat: Ultra-lightweight frame reduces fatigue
Orange Bat QC: Reinforced load-bearing walls for commercial longevity
Both share the same compact 158 mm frame footprint

3 Dedicated Magnetic Bit Storage

Bit Management

Orange Bat: Lacks integrated storage. Technicians must keep drive bits in a separate toolbox, case, or pocket, causing mid-job search delays.

Orange Bat QC: Adds a dedicated magnetic bit slot on the tool body, keeping drive bits securely enqueued and accessible directly on the tool.

Orange Bat: Standard design requires external bit storage
Orange Bat QC: Embedded magnet prevents lost drive bits
Both drive systems use a 1/4" hex connection

Orange Bat QC updated access and working angles

4 Improved Access and Working Angles

Spindle Ergonomics

Orange Bat: Features a standard spindle access window that can feel slightly tight when threading line on deep windshield corners.

Orange Bat QC: Features a wider, optimized spindle access opening, giving technicians better line clearance and cleaner entry angles.

Orange Bat: Classic clearance is reliable for standard glass contours
Orange Bat QC: Enlarged access simplifies fiber line threading
Both systems support hand crank or cordless drill power

Technical Specifications

Specification	Orange Bat	Orange Bat QC
Quick Connect Port	Not available	Integrated NEW
Tool Body Construction	Standard	Reinforced
Magnetic Bit Storage	Not available	Integrated NEW
Spindle Access Opening	Standard	Enlarged
Weight	0.65 kg / 1.44 lb	0.692 kg / 1.52 lb
Length	161 mm / 6.3 in	158 mm / 6.22 in
Low Profile Design
Dual Spindle Design
Enclosed Metal Components
Spindle Configuration	1/4" hex drive	1/4" hex drive
Suction Cup Size	6 inch	6 inch
Side Release Tab
Power Methods	Cordless drill or Hand Crank	Cordless drill or Hand Crank
QC Attachments	Not compatible	Compatible NEW

Should You Upgrade?

Perfect for New Buyers

If you're buying into the Orange Bat platform now, the QC is the clear choice. It keeps the proven compact dual-spindle tool and adds the workflow upgrades technicians notice every day.

Latest technology from day one
Enhanced durability and usability
Quick Connect accessory path
Best long-term value

Consider Upgrading If...

Current Orange Bat owners should look at the QC if they want faster setup, cleaner bit handling, and the Quick Connect accessory interface. The original still works; the QC removes daily friction.

High-volume professional use
Want easier access and bit management
Building a comprehensive WRD toolkit
Want access to future QC accessories

Important Note: The original Orange Bat remains a proven professional tool. The QC is not a replacement for the concept; it is the refined version of the same compact dual-spindle platform, with better setup flow and Quick Connect expandability.

Field Insights & Safety Guidelines

Drill Clutch Settings

When powering either tool with a cordless drill, use a light or medium mechanical clutch setting. Avoid locked "drill mode"; if the fiber line catches on a hidden guide pin or clip, a slipping clutch helps reduce the risk of snapping the line or twisting the tool.

Plunger Maintenance

To protect internal pump seals and O-rings, keep glass surfaces clean and periodically apply a drop of plunger lubricant (e.g., WRD Tube-O-Lube). If a tool slowly loses vacuum, check pump seals for debris. Never operate a tool if the red safety indicator line remains visible.

Line Alignment & Spooling

Always position the winding tool so the cutting line feeds as straight as possible onto the spindles. Winding line at severe vertical angles causes the fiber to wrap unevenly on the spools, which increases spool friction, creates binding, and leads to premature line wear.

What Both Models Share

Both the Orange Bat and Orange Bat QC share the compact dual-spindle foundation that made the system a favorite for quarter glass and standard auto glass removal.
