Cutting fiber line removal system.
Provides safe and efficient auto glass panel removal.
- Highest safety standard removal
- Winding and anchoring in single streamlined frame
- Low profile design
- Cordless drill operation via side connection
- Includes angle driver
New in Spider 4M:
- Male hex spindle for enhanced drill compatibility
- Integrated door latch notch for stable low-position mounting

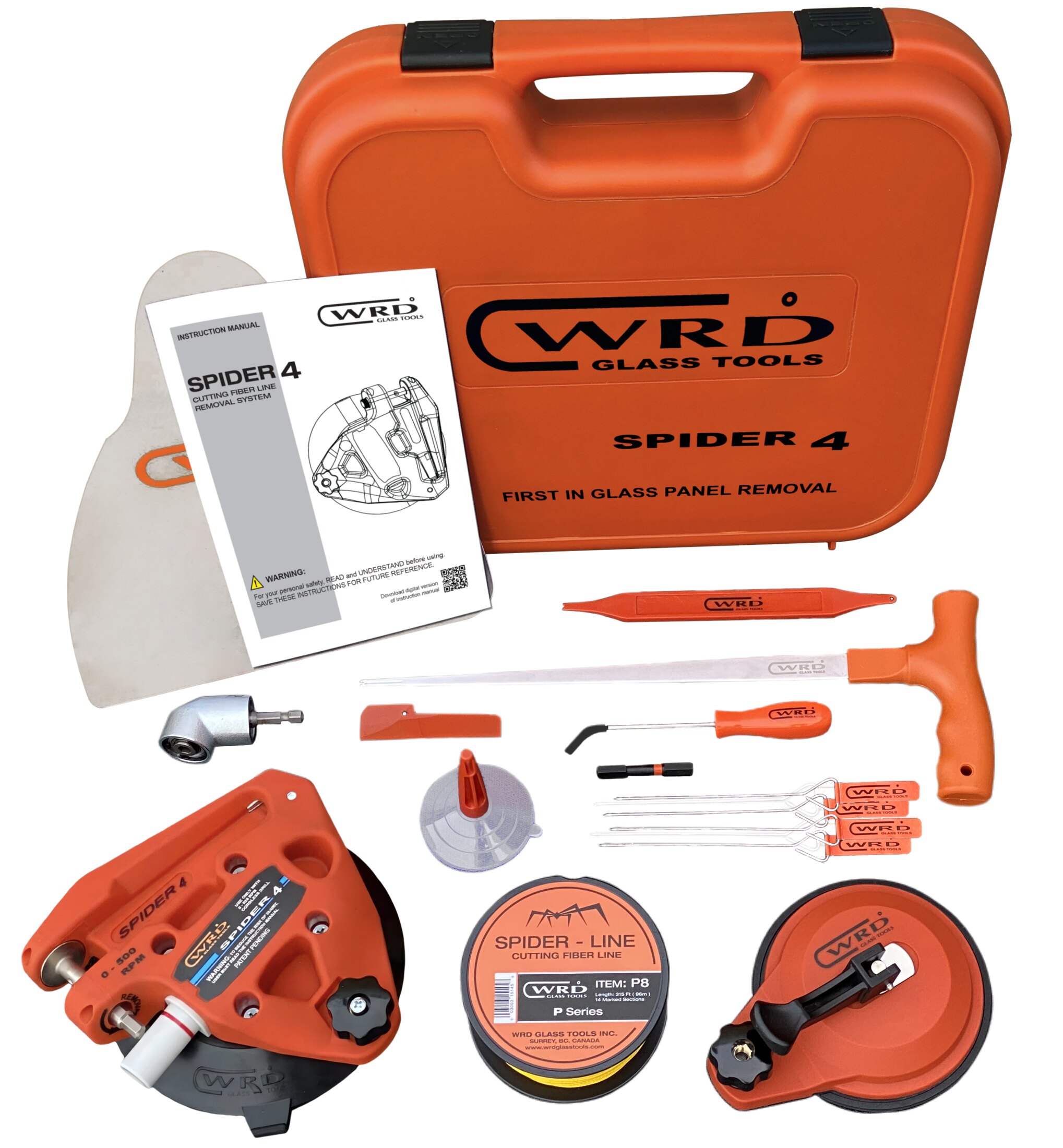

Kit Cotents:
- Spider 4M Cup Assembly - WRD-SA4M
- Spider Line P8 MAX (96m) - WRD-P8-96
- Anchor Cup With Concave Rub Pad - WRD-A3
- Cutting Line Threader - WRD-T
- S4 Deep Socket - WRD-S4DS
- Dash Protector - WRD-DP
- Cutting Line Dispenser 2.0 - WRD-LD2
- Pick Tool - WRD-MP
- Install Stick - WRD-IS
- Cutting Line Holder Pins - WRD-LP
- Spider 4 Plastic Tool Case - WRD-PB4
- Instruction Manual - WRD-IM
- Angle Driver 2.0 - WRD-AD2
Available Colors:
At a glance
- Integrated frame anchor Tool anchoring
- Fiber line Line type
- Complete kit (300P) Configuration
Field-use notes
- Use controlled drill speed: start slow and keep the cut smooth.
- Manage line angle: reposition the tool to avoid aggressive pulls and line breakage.
- Use the dash protector: protect interior surfaces throughout the removal.
- Match line to vehicle: P8 is the default; use thinner or heavier line when the job calls for it.
What changed in 4M
Male hex spindle
Faster bit engagement and a more secure drive connection.
Door striker notch
Anchoring option for quarter-glass removals and tight body openings.
Reinforced spindle
Built for higher-tension pulls and repeated shop use.
Improved pump access
More clearance around the pump for faster vacuum setup.
Technical specifications
| Core design | Low-profile single-spindle removal system |
|---|---|
| Drive method | Cordless drill via Angle Driver 2.0 |
| Recommended drill speed | 0-500 RPM |
| Cutting medium | WRD synthetic Spider Line |
| Anchoring | On-tool anchor point, separate anchor cup, door striker notch |
| Included line | Spider Line P8 (96 m) |
| Best fit | Windshields, body glass, mobile and collision-shop work |
| Fallback drive | Hand Crank 360 compatible |
