WRD-BC-300 Orange

Bobcat Kit 300

Compact glass removal

The tool pulls and holds.
You guide the cut.

Compact fiber-line removal with electric vacuum and two winding spindles.

  • Electric vacuum: The ePump X monitors and tops up vacuum while you work.
  • Twin-spindle layout: Two winding positions in a compact removal assembly.
  • Powered or manual: Use a cordless drill or the included Bison Hand Crank.
Kit configuration
300Without angle driver or ACT5 300PWith Angle Driver 2.0 + ACT5 + adapter
Where to Buy
The Bobcat system See how Bobcat works Electric vacuum. Dual-spindle control.
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Find replacement parts
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Understand the tool

Bobcat assembly, up close

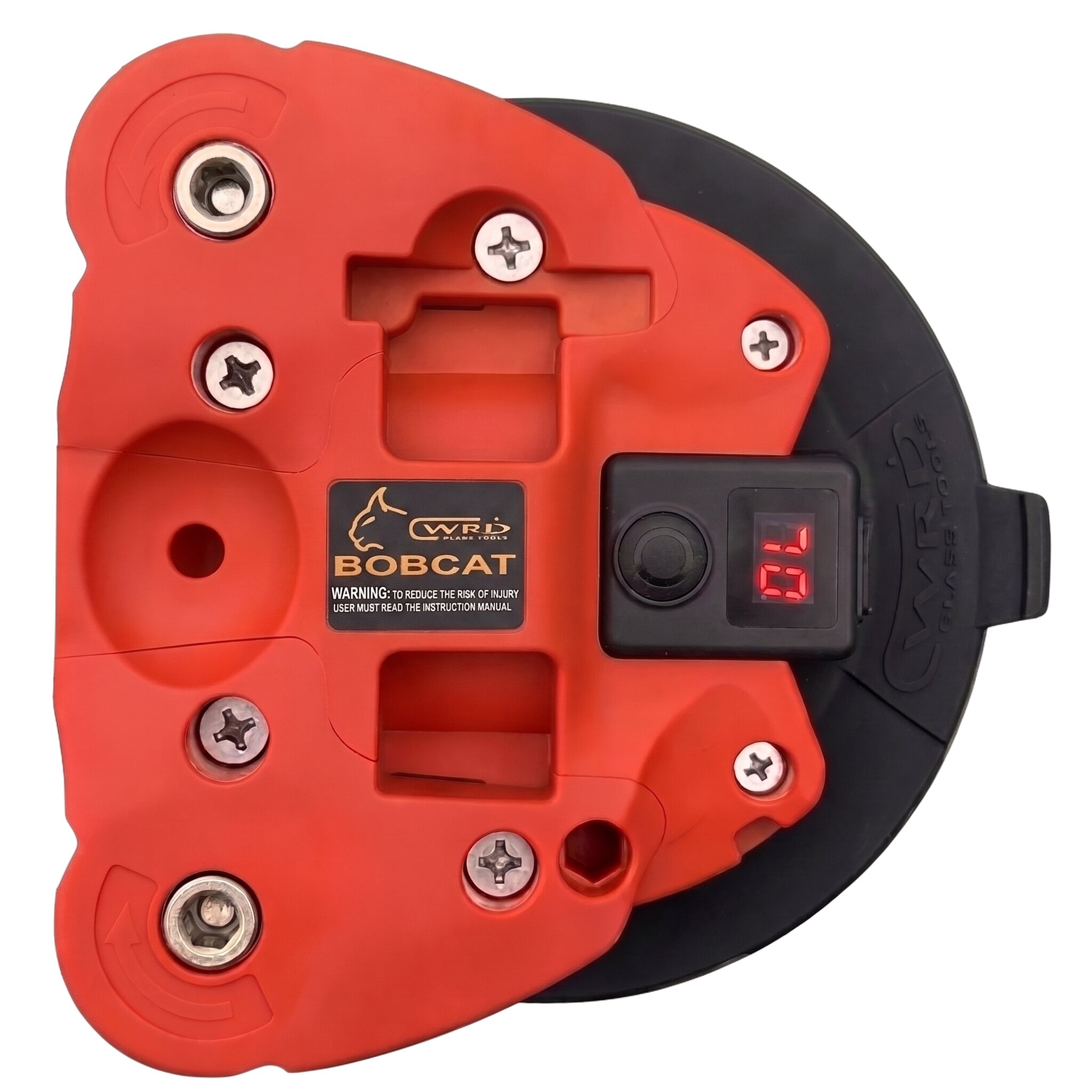

Bobcat assembly from above, showing both winding spindles, the ePump X button and display, and the suction pad
View the Bobcat Assembly
  1. Winding spindles

    Drive either spindle with a drill or the hand crank. Use the U Bit to hold the opposite spindle while you wind.

  2. ePump X

    Press and hold to start the pump. It restarts as needed to maintain vacuum. The display shows vacuum pressure and battery level.

  3. Suction pad

    The 6.5-inch pad holds the tool in position on the glass. Use the side tab to release it after the cut.

Quick Connect CUT · Removal tool port Add a handle or hook

Fits the Bobcat's Quick Connect port. Sold separately.

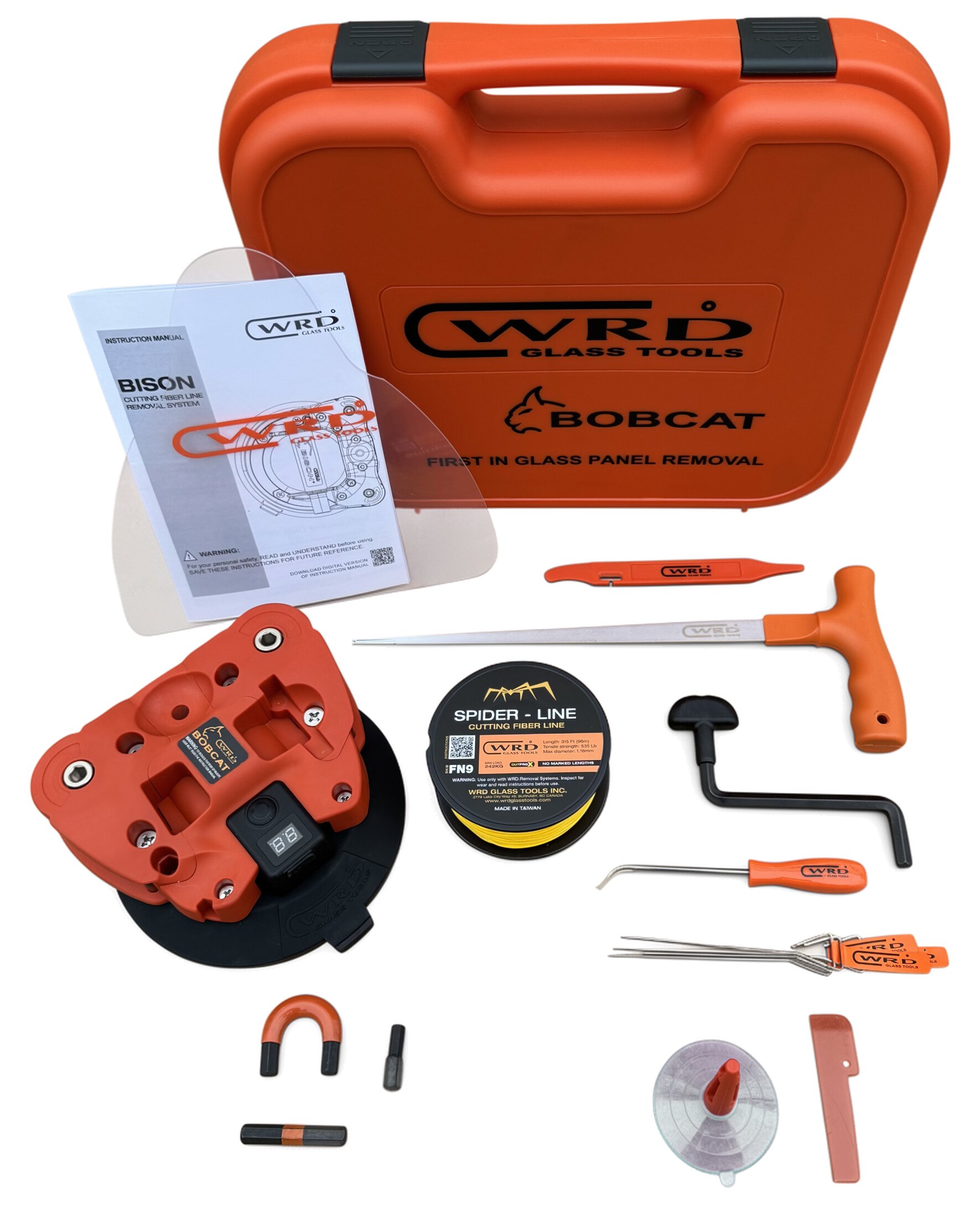

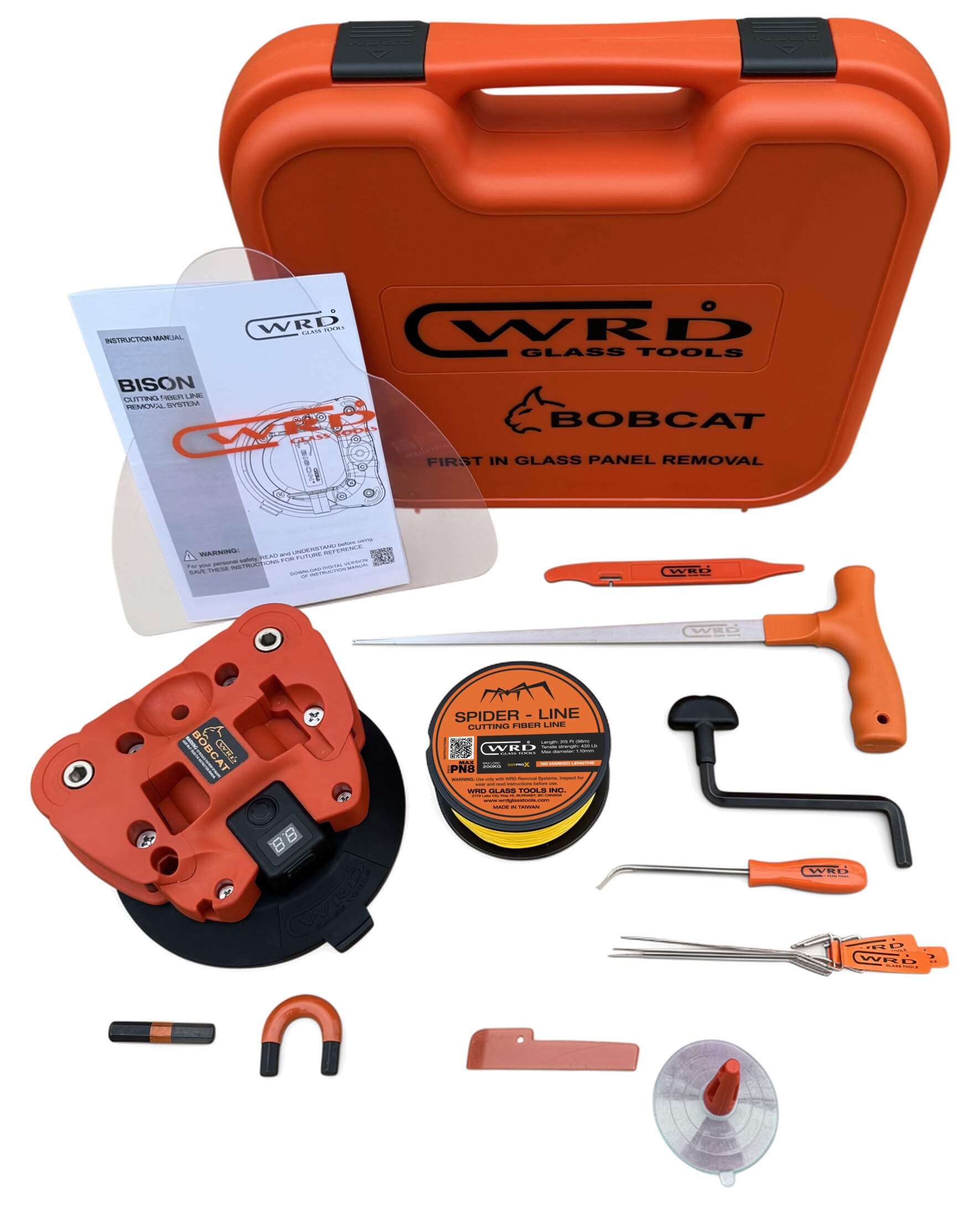

Package Manifest

Kit Contents

13 Line items
Specifications

Technical specifications

Core assembly Bobcat dual-spindle assembly (WRD-BCA) with integrated ePump X
Vacuum system ePump X electric vacuum; monitors pressure and tops up automatically
Suction pad 6.5-inch side-release suction pad (WRD-VP7)
Drive interface 5/16-inch hex spindle connections; Bison Bit and Bison Hand Crank included
Spindle hold Bison U Bit (WRD-BNUB) holds the opposite spindle while line winds
Included line Spider Line PN8 MAX (96 m / 315 ft, 430 lbs tensile)
Standard storage Bobcat plastic tool case (WRD-BCPB) with EVA foam insert
Accessory port Quick Connect CUT · Removal tool port

Built-in ePump X

Explore ePump X
Battery capacity2,000 mAh · rechargeable
USB chargingUSB-C · 5V input
Output voltage3.7V
Rated power3.5W
DisplayPressure in kPa · battery level P1–P9
ControlsPress and hold to start the pump. Double-click to release pressure and switch off.
ChargingThe battery indicator flashes while charging. P9 means fully charged.
EPX operating instructions · pages 16–17
Consumables

Cutting line & refills

The line supplied with this kit

Spider Line PN8 MAX (96m)

96 m spool · No marked lengths

Get a replacement spool

A different cutting job?

Compare all cutting lines
Keep your tool working

Parts & support

Find individual Bobcat components below, or open the interactive diagram to inspect each part.

Bobcat replacement-parts schematic: body and suction pad at left; bearings, deflection rods, complete ePump X, spindle and springs arranged separately at right. 1234567
Explore Bobcat parts Parts identification · Not to scale.
  1. Ball bearingsWRD-BCBBSet of 2 ball bearings.
  2. Deflection rodsWRD-BCDRSet of 2 deflection rods.
  3. ePump X electric pumpWRD-EPXePump X electric vacuum pump · 2,000 mAh battery, USB-C charging.
  4. 6.5-inch suction padWRD-VP76.5-inch rubber pad with side-release tab.
  5. Spindle / shaftWRD-BCHSpindle with a 5/16-inch hex drive.
  6. Body componentsWRD-BCSCBody housing and winding covers.
  7. Spring setWRD-OBSSSpring set shared with the Orange Bat.
Explore the interactive parts diagramSee parts assembled or separated, highlight a component and find its replacement.
Complete Bobcat assembly Help identifying a part
