WRD fiber-line cutout system
Electric vacuum.
Dual-spindle control.
A compact cutout tool with two winding spindles. Your drill or the included hand crank drives the fiber line. The ePump X monitors and tops up vacuum.
What carried forward
The winding arrangement. The electric pump. A compact system built around both.
The winding arrangement
Two winding positions and adjustable line control—the architecture retained in Bobcat.
The pump foundation
Bison’s ePump motor specifications carried forward into Bobcat’s integrated ePump X.
Brought together. Further developed.
Retained winding control, integrated electric vacuum and a larger 6.5-inch VP7 pad.
The Bobcat system
A 6.5-inch suction pad, integrated ePump X and 5/16-inch hex drive connections. Here’s how the vacuum and line drive work.
The ePump X monitors vacuum and tops it up automatically. Check pressure and pump status on the display while you work.
The integrated module retains Bison ePump motor specifications. Keep checking the seal and pump status during use.
Wind with your drill or the included hand crank while the U-bit stops the opposite spindle. You control the winding and follow the cut.
The retained arrangement takes Bison drive accessories and supports ACT5 adjustment of line resistance.
Included in 300P
Set line resistance with its adjustable slip disk. ACT5 controls line drag; ePump X manages vacuum.
Pump & suction pad
Orange Bat’s manual pump can draw a deeper vacuum. Bobcat’s larger VP7 pad was developed to compensate for the electric-pump difference.
The VP7 profile and sealing edge went through repeated refinements for the Bobcat system.
At the glass
Two winding positions on the glass. Fiber line across the windshield. A view of the tool in the space where you work.
Kit selection

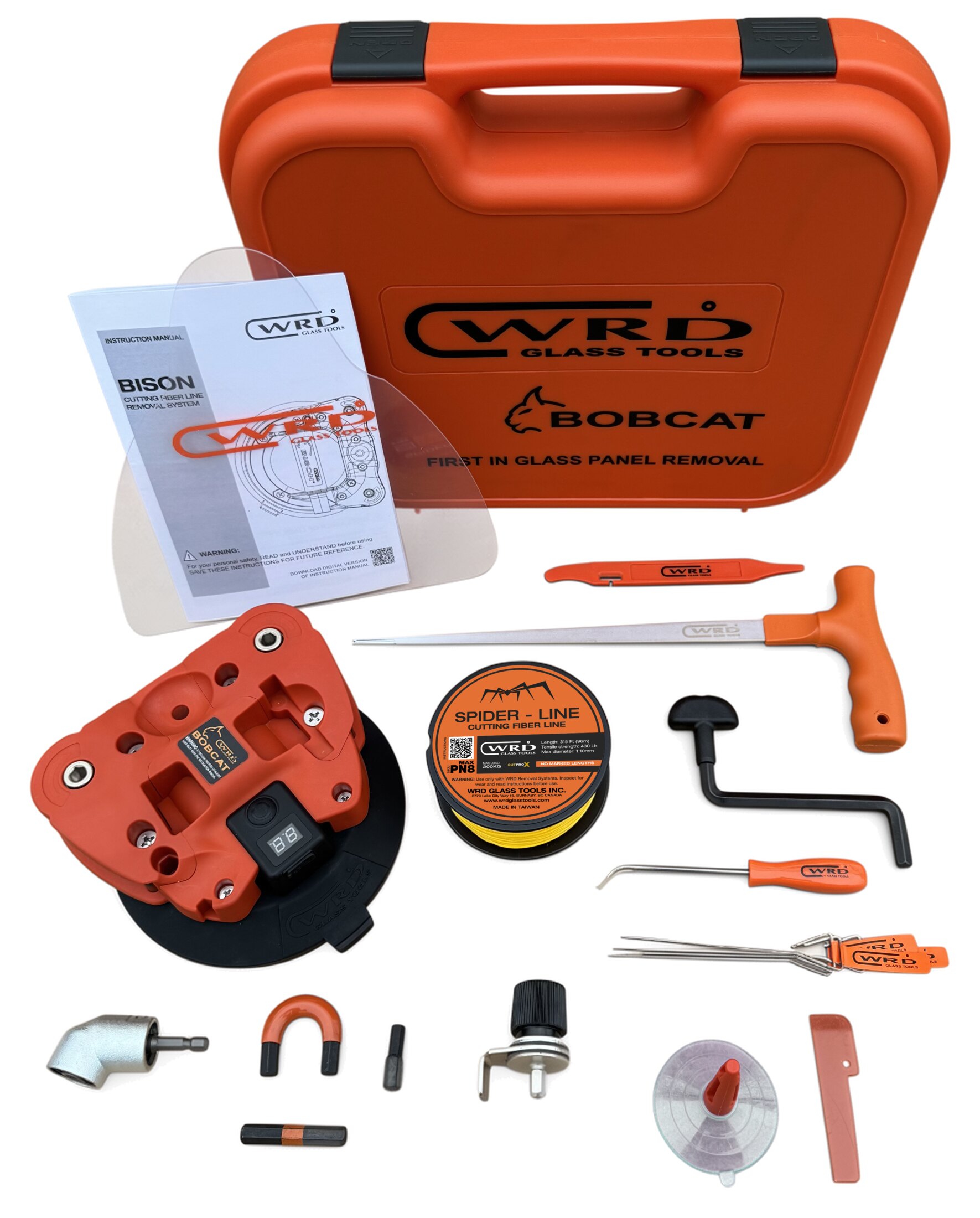

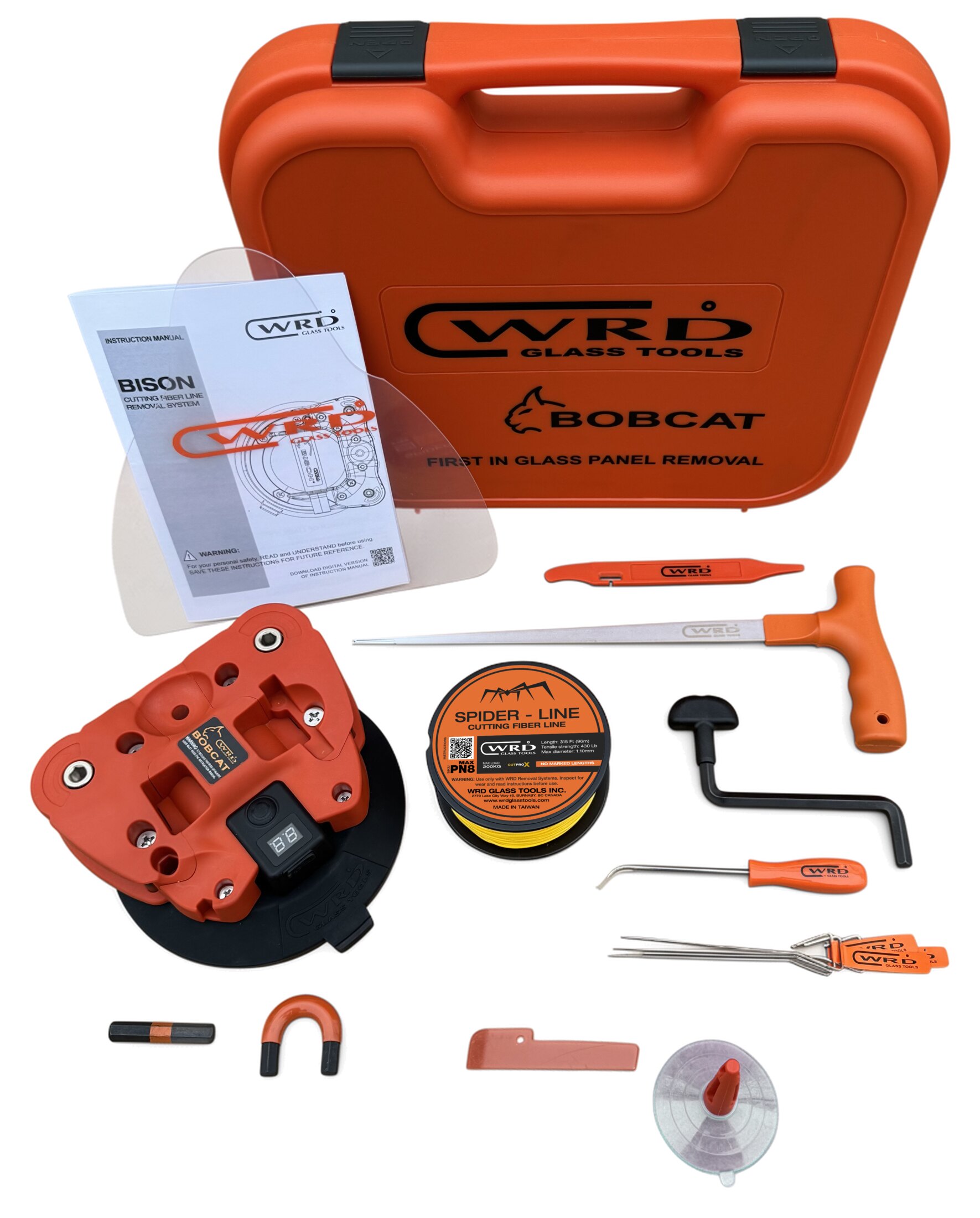

Both kits include the Bobcat assembly, fiber cutting line and Bison Hand Crank. The 300P adds Angle Driver 2.0, Automated Clutch Tool and Bit Adapter.
The 300P difference

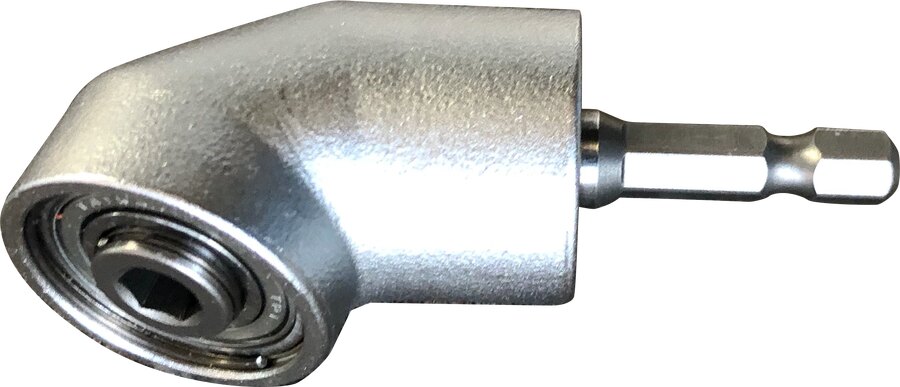

WRD-AD2Changes the angle of the drill connection.

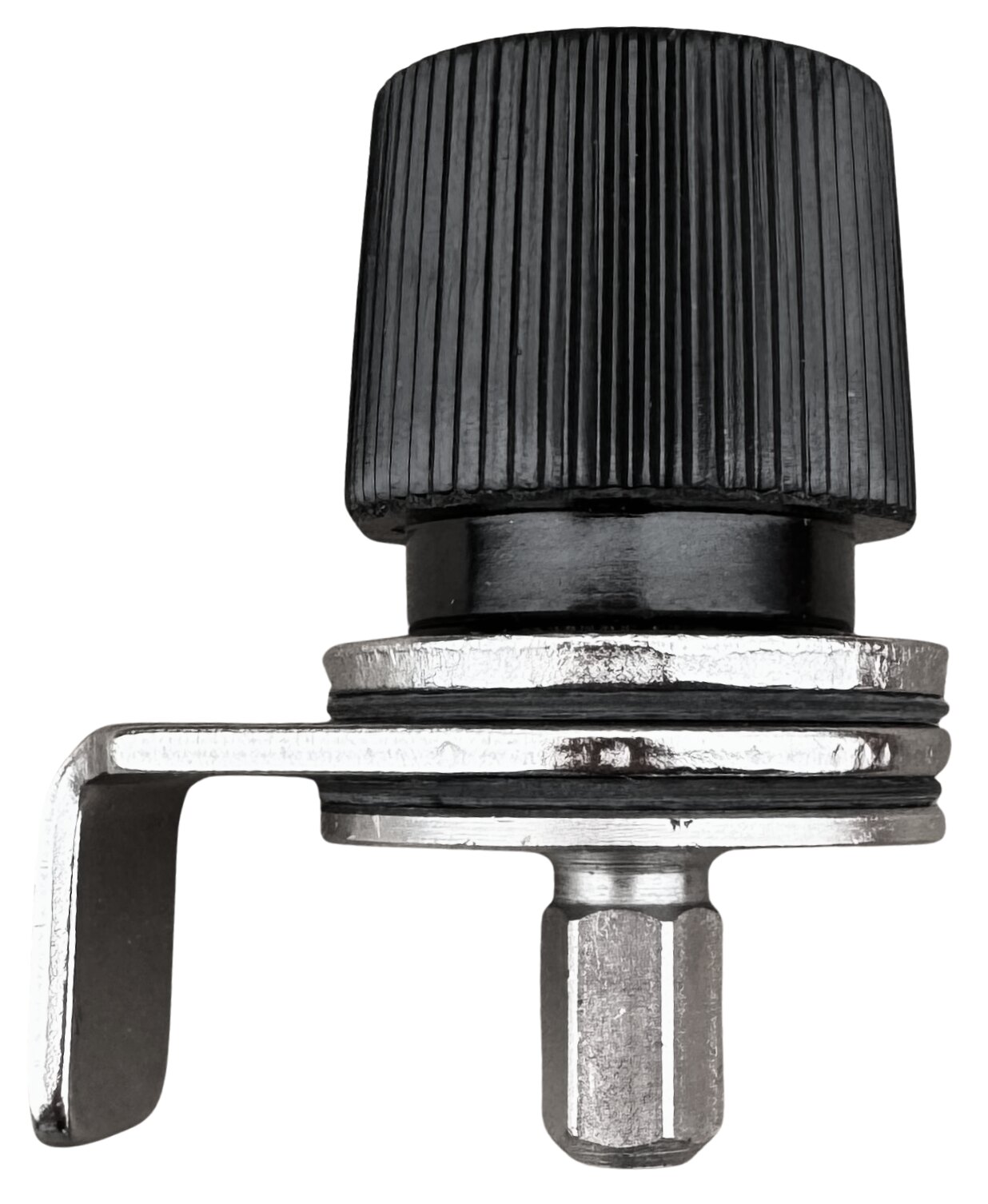

WRD-ACT55/16-inch clutch for line-tension control.

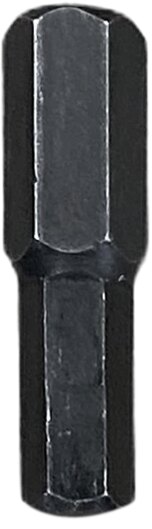

WRD-BNBABison Bit Adapter, included with 300P.
Product support
No. The ePump X manages vacuum. The cutting line is driven through the spindles using a cordless drill or the included Bison Hand Crank.
Angle Driver 2.0 (WRD-AD2), Automated Clutch Tool – 5/16-inch (WRD-ACT5), and Bit Adapter (WRD-BNBA). Both packages use the Bobcat platform.
Use WRD Product Support for setup questions and replacement-part guidance. Your selected kit page provides its product details and available resources.
