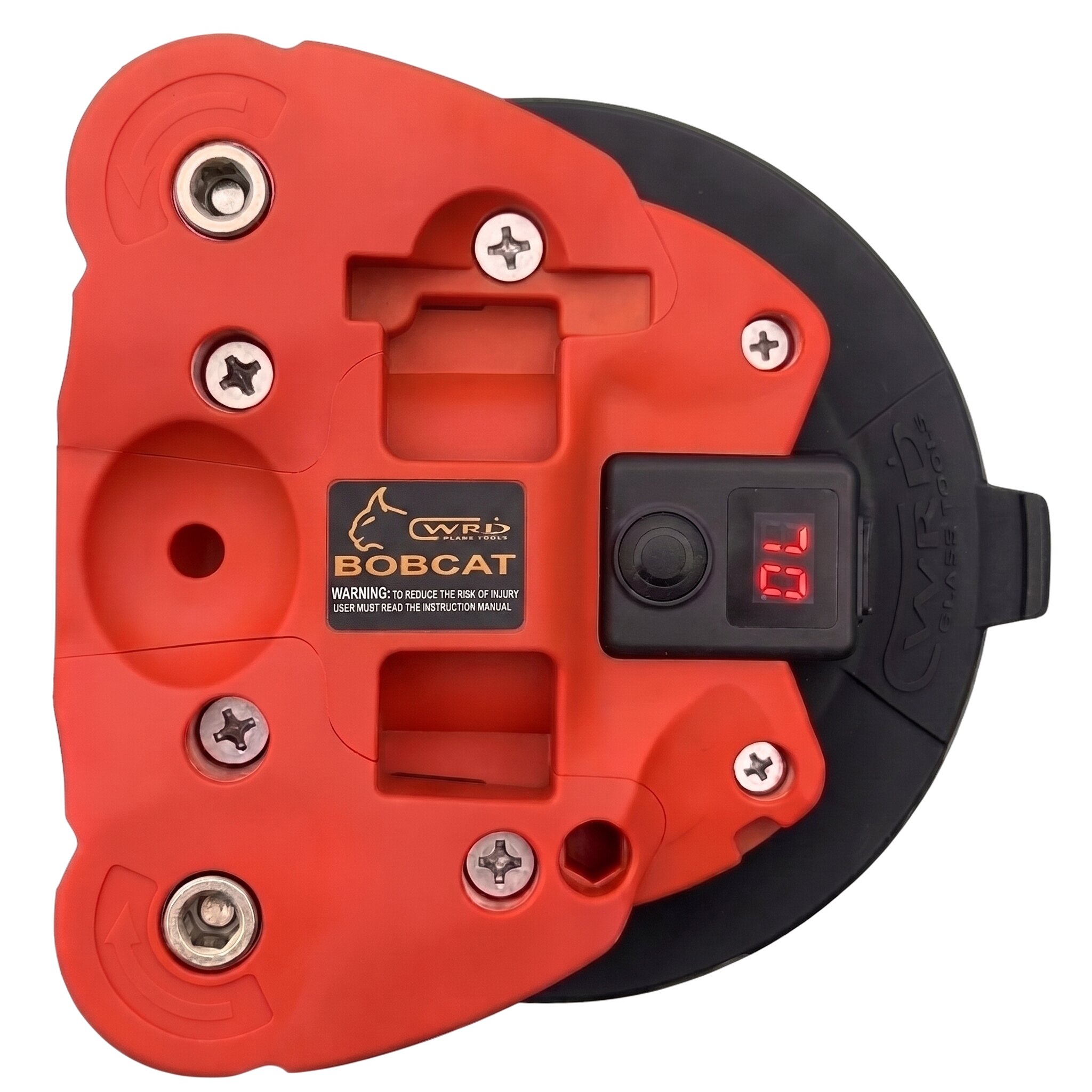

WRD-BCA Bobcat Assembly

Bobcat Assembly

Bobcat assembly

Fiber-line glass removal

Compact cutout.
Electric vacuum.

A dual-spindle removal assembly with built-in ePump X vacuum. Drive the spindles with a cordless drill or Bison Hand Crank while EPX manages the hold at the pad.

Port
Quick Connect CUT · Removal tool port
Suction pad
6.5-inch VP7 · side release
Drive interface
5/16-inch hex
Layout
Two winding spindles
Finish
StandardBlack Edition
Explore complete Bobcat kits
The removal assembly

Spindle drive & line control

Two winding positions

Two winding positions

Two spindles share a compact, low-profile frame for fiber-line glass removal.

Drill or hand crank

Drill or hand crank

The 5/16-inch drive works with the Bison Bit and Bison Hand Crank. Electric vacuum and spindle drive do separate jobs.

Electric vacuum

Built-in ePump X

EPX monitors vacuum and runs the pump again when pressure needs topping up. Its display shows vacuum pressure and battery status.

Explore ePump X
Battery capacity2,000 mAh · rechargeable
USB chargingUSB-C · 5V input
Output voltage3.7V
Rated power3.5W
DisplayPressure in kPa · battery level P1–P9

One-button control. Press and hold to start the pump. Double-click to release pressure and switch off.

The battery indicator flashes while charging. P9 means fully charged.

EPX operating instructions · pages 16–17
Quick Connect accessories

Handle & hook options

These attachments are recommended for Bobcat’s Quick Connect port and are available separately.

Cup service

Replacement parts

Browse all Bobcat parts
Complete setup

Choose a complete Bobcat kit

Bobcat Kit 300

The assembly with fiber line, hand crank, setup tools, carrying case and instructions.

WRD-BC-300

Bobcat Kit 300P

Adds Angle Driver 2.0, Automated Clutch Tool 5/16-inch and the Bit Adapter to the 300 package.

WRD-BC-300P
