WRD-S4M-300 Orange

Spider 4M Kit 300

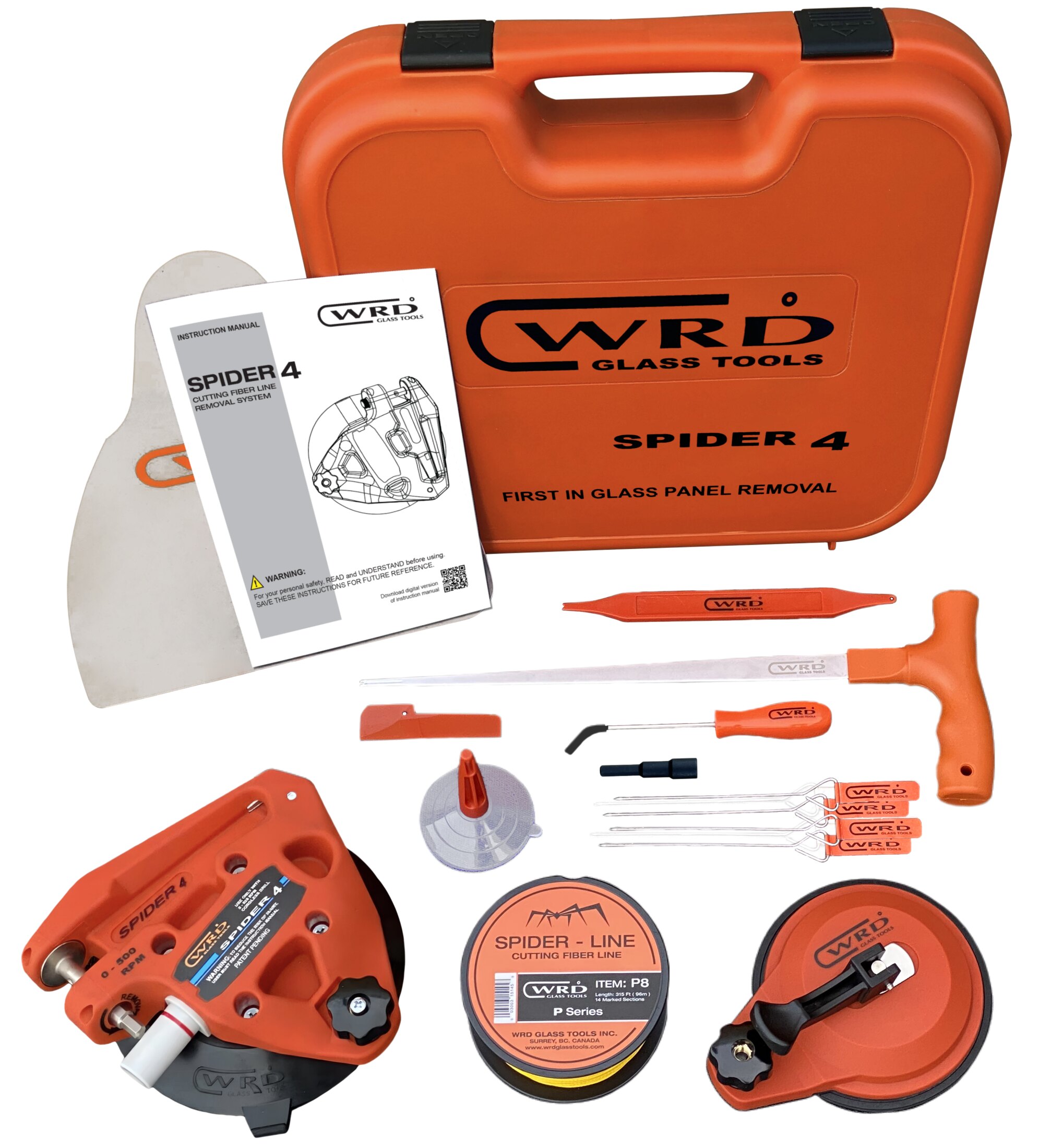

WRD Spider 4M Kit 300 (WRD-S4M-300) - Standard auto glass fiber line removal kit
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Find replacement parts

An integrated fiber-line removal system for a repeatable shop workflow.

Single-spindle removal kit for controlled auto-glass work. Supplied with Spider Line P8 MAX (96m).

  • Integrated winding and anchoring
  • Low-profile, drill-driven removal
  • Angle Driver 2.0 available separately
Kit configuration
300Without angle driver 300PWith Angle Driver 2.0
Color: Orange
Orange Black Edition
Where to Buy
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Capabilities

What changed in 4M

Male hex spindle

Male hex spindle

Faster bit engagement and a more secure drive connection.

Door striker notch

Door striker notch

Anchoring option for quarter-glass removals and tight body openings.

Reinforced spindle

Reinforced spindle

Built for higher-tension pulls and repeated shop use.

Improved pump access

Improved pump access

More clearance around the pump for faster vacuum setup.

Package Manifest

Kit Contents

12 Line items
Specifications

Technical specifications

Drive mechanism Cordless drill powered directly via S4 Deep Socket
Recommended drill speed 0–500 RPM (low-speed setting)
Spindle interface Direct male hex drive for positive bit lock
Vacuum attachment Pump-activated suction cup with contour rub pad
Consumables

Cutting lines

Compare cutting lines →

Choose cutting line for the glass and urethane you are working with. Use the line guide to compare the range.

Included in this kit Spider Line P8 MAX (96m)

P6 0.65 mm 279 lb View line → X 0.85 mm 371 lb View line → P8 MAX 0.85 mm 365 lb Included line → FN9 1.05 mm 515 lb View line → P10 1.20 mm 468 lb View line →
Field Guidance

Field-use notes

  • Use controlled drill speed: start slow and keep the cut smooth.
  • Manage line angle: reposition the tool to avoid aggressive pulls and line breakage.
  • Use the dash protector: protect interior surfaces throughout the removal.
Keep your tool working

Service your Spider 4M

Replace the component, not the complete kit.

Find individual parts for your Spider 4M, from the tool body and spindle to the pump, pad and mounting hardware.

Locate a component on the toolBody · spindle · pump · suction pad
Spider 4M assembly. Numbered markers correspond to the component links alongside.
Spider 4M Component locator
Find a component
  1. Spider 4M Body ComponentsWRD-SC4M
  2. Spindle/Shaft - MaleWRD-HSM
  3. Small Suction PumpWRD-SP3
  4. Side Release 6" Suction PadWRD-VP3

Also in the parts catalog: bearings, rollers, guide hardware and screws.

Identify & find Spider 4M parts

Match your model and check the individual part details before ordering.

Need the complete assembly? Help identifying a part
