WRD-S4M-300-BLK Black Edition

Spider 4M Kit 300

Integrated glass removal

Winding and anchoring in one removal tool.

An integrated fiber-line removal system for a repeatable shop workflow.

Single-spindle removal kit for controlled auto-glass work. Supplied with Spider Line P8 MAX (96m).

  • Integrated winding and anchoring
  • Low-profile, drill-driven removal
  • Angle Driver 2.0 available separately
Kit configuration
300Without angle driver 300PWith Angle Driver 2.0
Color: Black Edition
Orange Black Edition
Where to Buy
The Spider 4M system See how Spider 4M works Wind. Guide. Anchor. One frame.
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Find replacement parts
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Capabilities

The 4M drive, vacuum & anchoring

Male-hex spindle

The 4M drive projects from the winding housing as a male-hex spindle. It replaces the recessed female connection of the earlier Spider 4.

Manual pump access

The 4M frame leaves room around the manual pump plunger. The SP3 pump establishes vacuum at the 6-inch suction pad.

Door striker notch

The notch in the 4M frame provides an anchoring option for quarter-glass removal.

Package Manifest

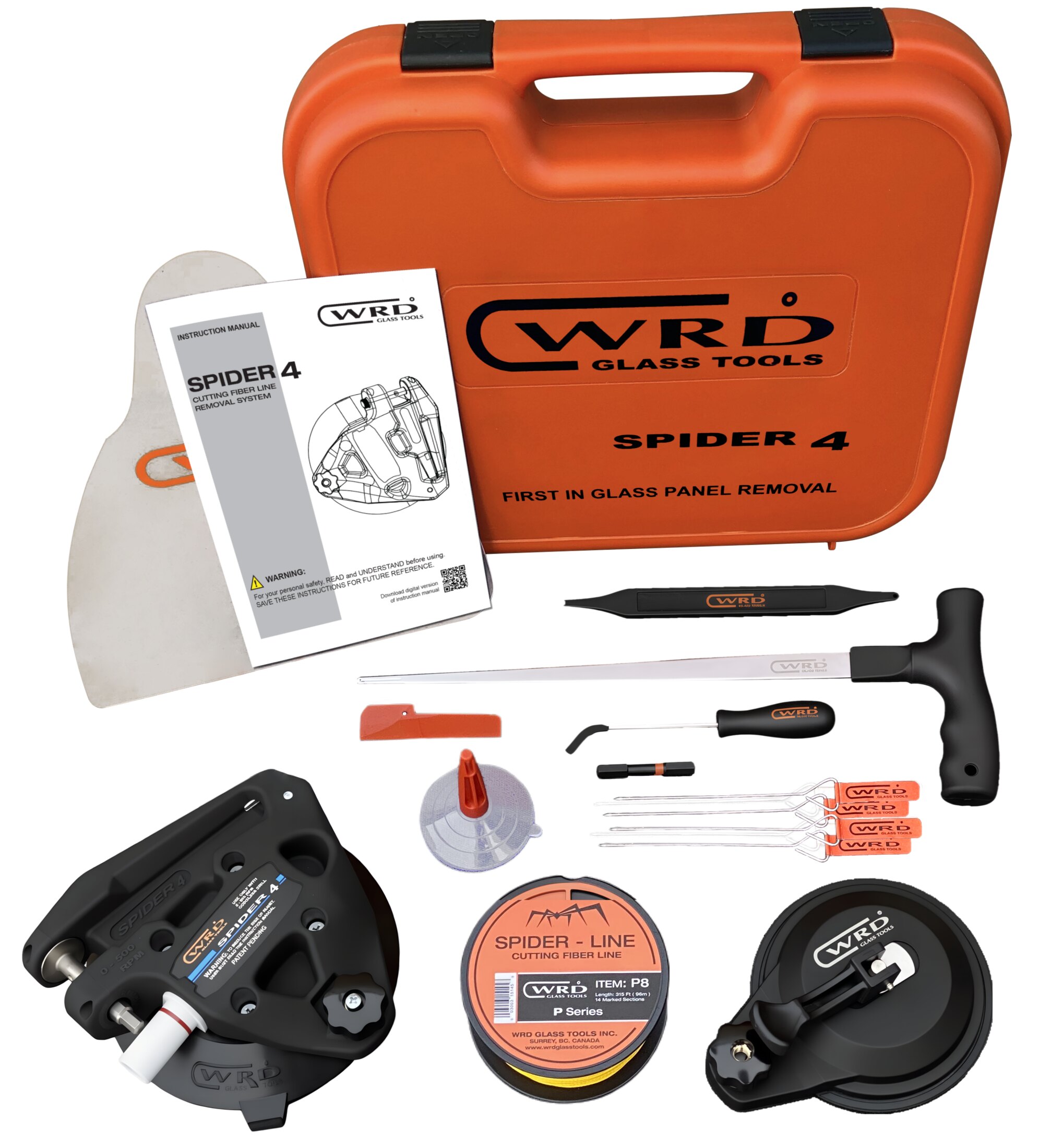

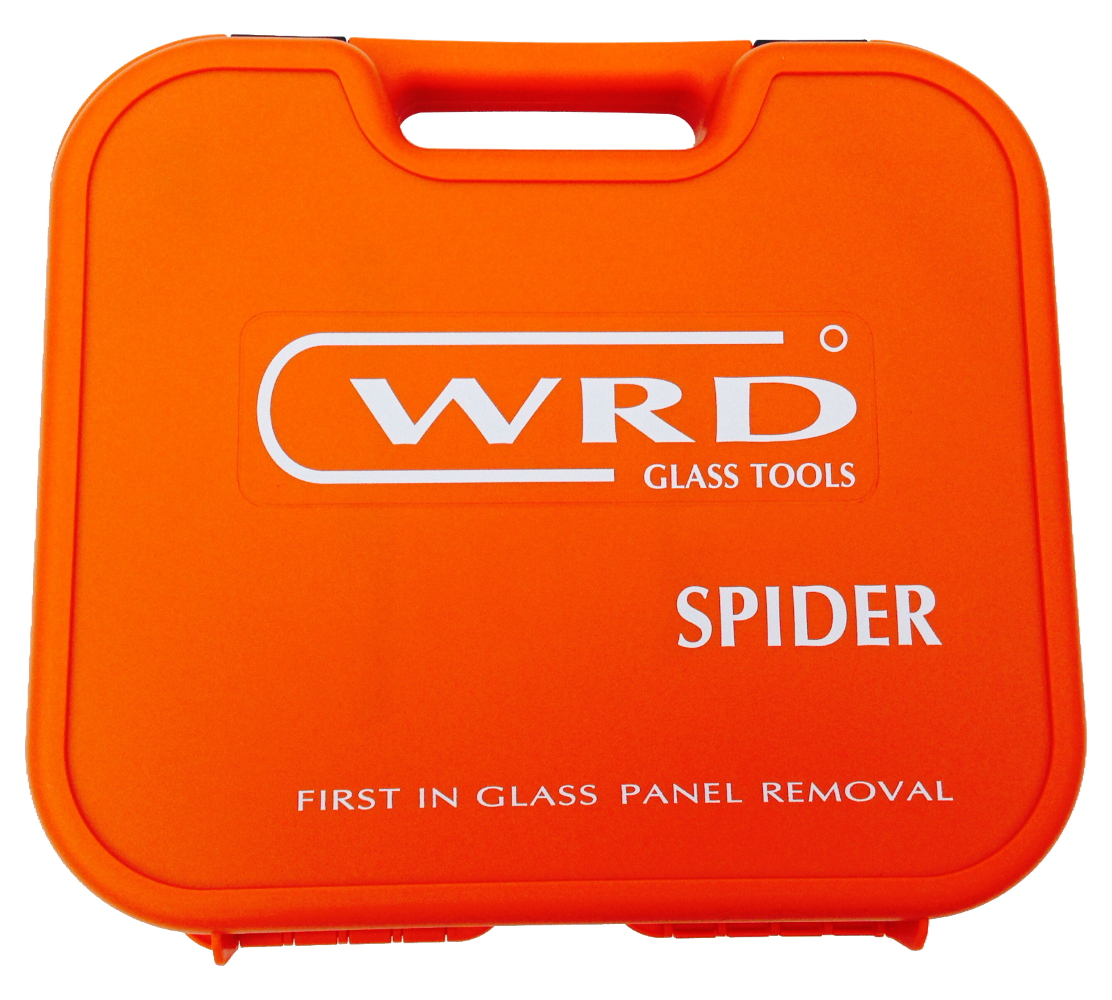

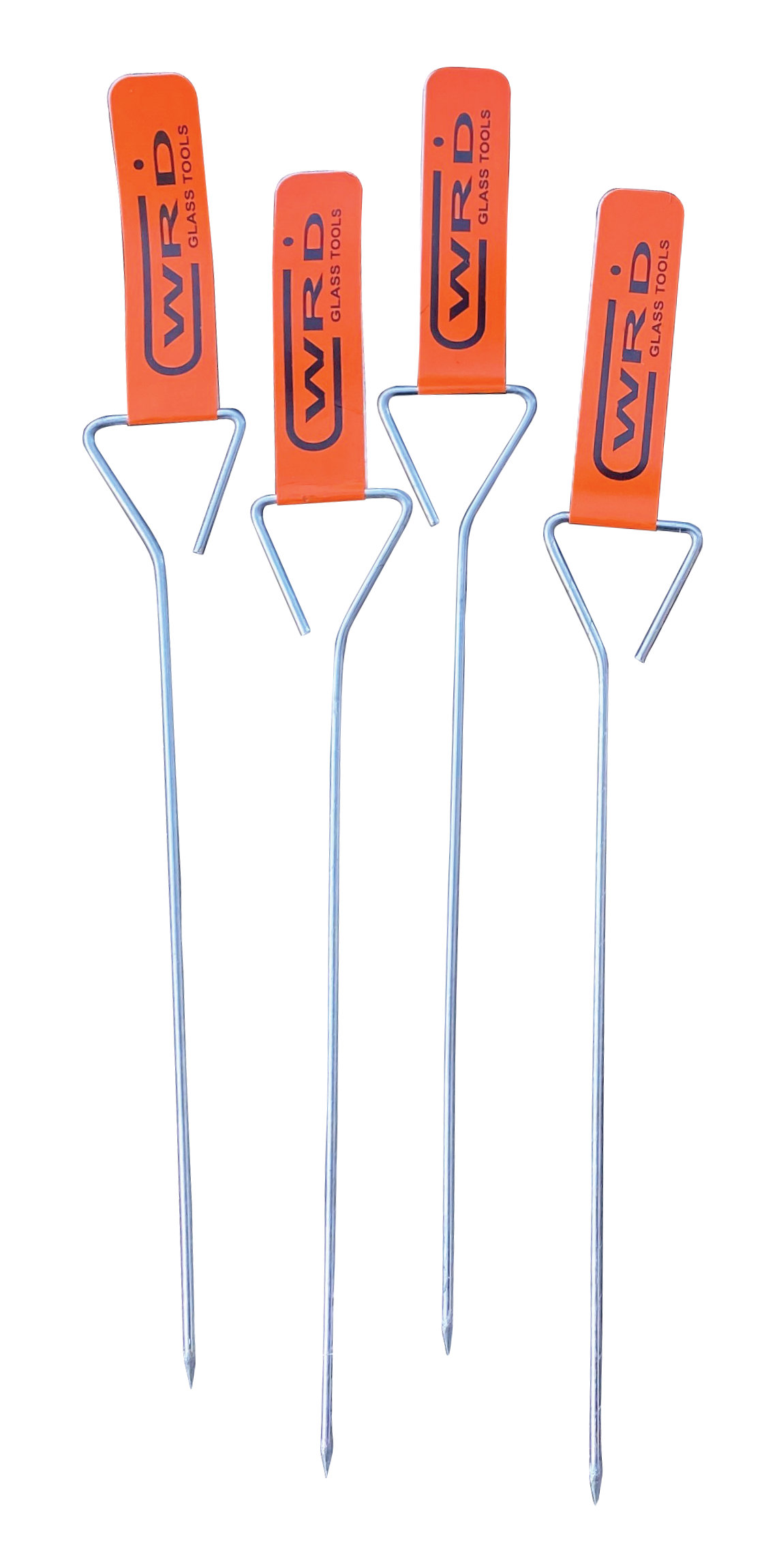

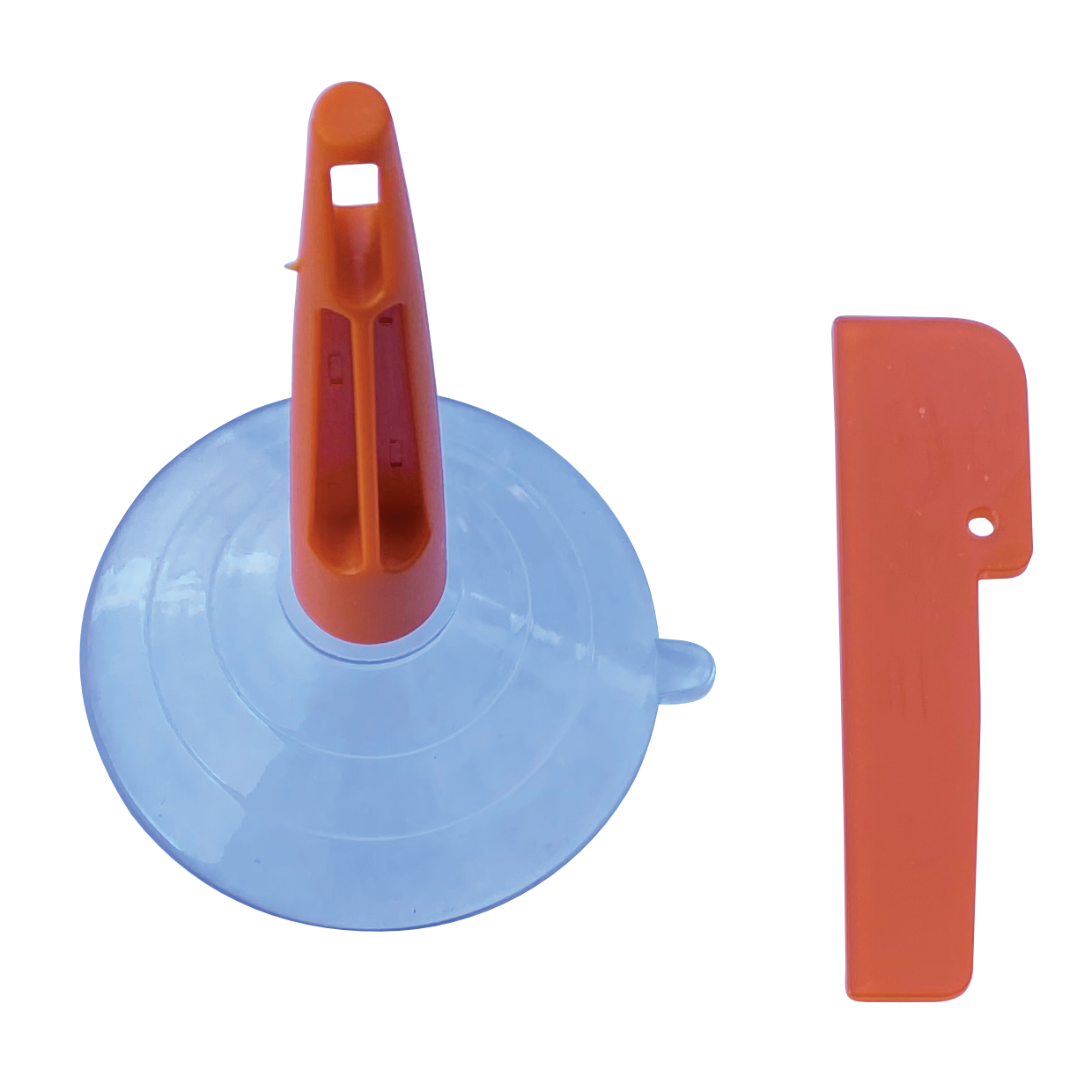

Kit Contents

12 Line items
Specifications

Technical specifications

Drive mechanism Cordless drill powered directly via S4 Deep Socket
Recommended drill speed 0–500 RPM (low-speed setting)
Spindle interface Direct male hex drive for positive bit lock
Vacuum attachment Pump-activated suction cup with contour rub pad
Consumables

Cutting lines

Compare cutting lines →

Choose cutting line for the glass and urethane you are working with. Use the line guide to compare the range.

Included in this kit Spider Line P8 MAX (96m)

P6 0.65 mm 279 lb View line → X 0.85 mm 371 lb View line → P8 MAX 0.85 mm 365 lb Included line → FN9 1.05 mm 515 lb View line → P10 1.20 mm 468 lb View line →
Keep your tool working

Parts & support

Find individual Spider 4M components below, or open the interactive diagram to inspect each part.

Spider 4M replacement-parts schematic: body, lower housing, shaft covers and suction pad at left; male spindle, bearings, roller, guide hardware, adjustment knob and complete SP3 manual pump with red indicator arranged separately at right. 1234567
Explore Spider 4M parts Orange finish shown · Not to scale.
  1. Spindle / shaftWRD-HSMMale spindle with the short hex drive.
  2. Ball bearingsWRD-BB3Spindle bearings, seated under the shaft covers.
  3. SP3 suction pumpWRD-SP3Manual plunger pump with the red vacuum indicator.
  4. 6-inch suction padWRD-VP36-inch rubber pad with side-release tab.
  5. Metal guide hardwareWRD-MH3Guide bracket and lever in the lower housing.
  6. Metal rollerWRD-RO3Grooved roller inside the lower housing.
  7. Adjustment knobWRD-PKBlack adjustment knob.
Explore the interactive parts diagramSee parts assembled or separated, highlight a component and find its replacement.
Complete Spider 4M assembly Help identifying a part
