An integrated fiber-line removal system for a repeatable shop workflow.
Single-spindle removal kit for controlled auto-glass work. Supplied with Spider Line P8 MAX (96m).
- Integrated winding and anchoring
- Low-profile, drill-driven removal
- Angle Driver 2.0 included
What changed in 4M
Male hex spindle
Faster bit engagement and a more secure drive connection.
Door striker notch
Anchoring option for quarter-glass removals and tight body openings.
Reinforced spindle
Built for higher-tension pulls and repeated shop use.
Improved pump access
More clearance around the pump for faster vacuum setup.

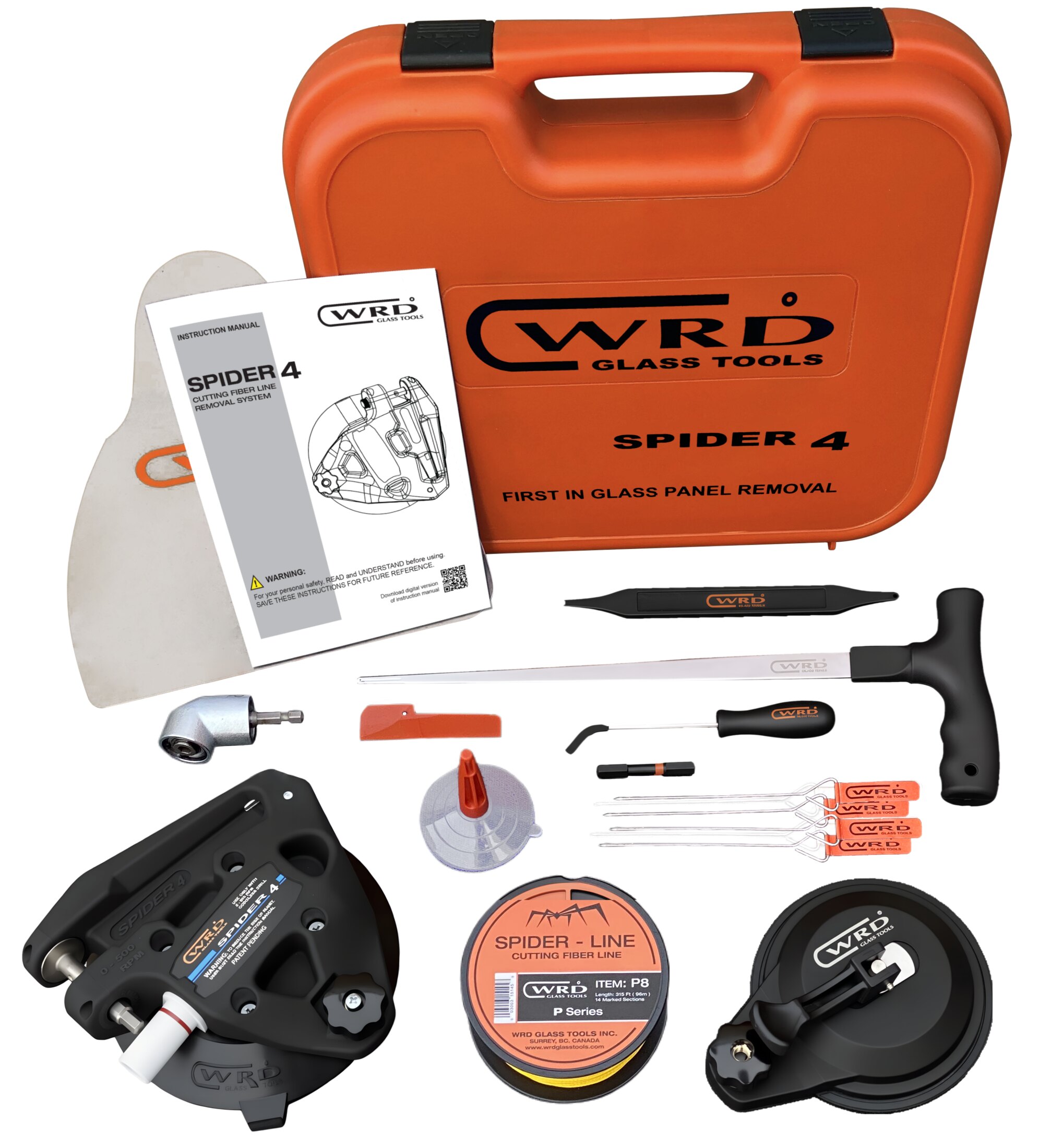

Kit Contents
-
WRD-SA4M-BLK -
WRD-P8-96 · Bundled Spool -
-
WRD-T-BLK -
WRD-DP -
WRD-LD2 -
WRD-MP-BLK -
WRD-S4B -
WRD-IS-BLK -
WRD-LP -
WRD-PB4 -
WRD-IM
-
WRD-AD2
Technical specifications
| Drive mechanism | Cordless drill powered directly or via Angle Driver 2.0 |
|---|---|
| Recommended drill speed | 0–500 RPM (low-speed setting) |
| Spindle interface | Direct male hex drive for positive bit lock |
| Vacuum attachment | Pump-activated suction cup with contour rub pad |
Cutting lines
Choose cutting line for the glass and urethane you are working with. Use the line guide to compare the range.
Included in this kit Spider Line P8 MAX (96m)
Field-use notes
- Use controlled drill speed: start slow and keep the cut smooth.
- Manage line angle: reposition the tool to avoid aggressive pulls and line breakage.
- Use the dash protector: protect interior surfaces throughout the removal.
- Match line to vehicle: P8 is the default; use thinner or heavier line when the job calls for it.
Parts & support

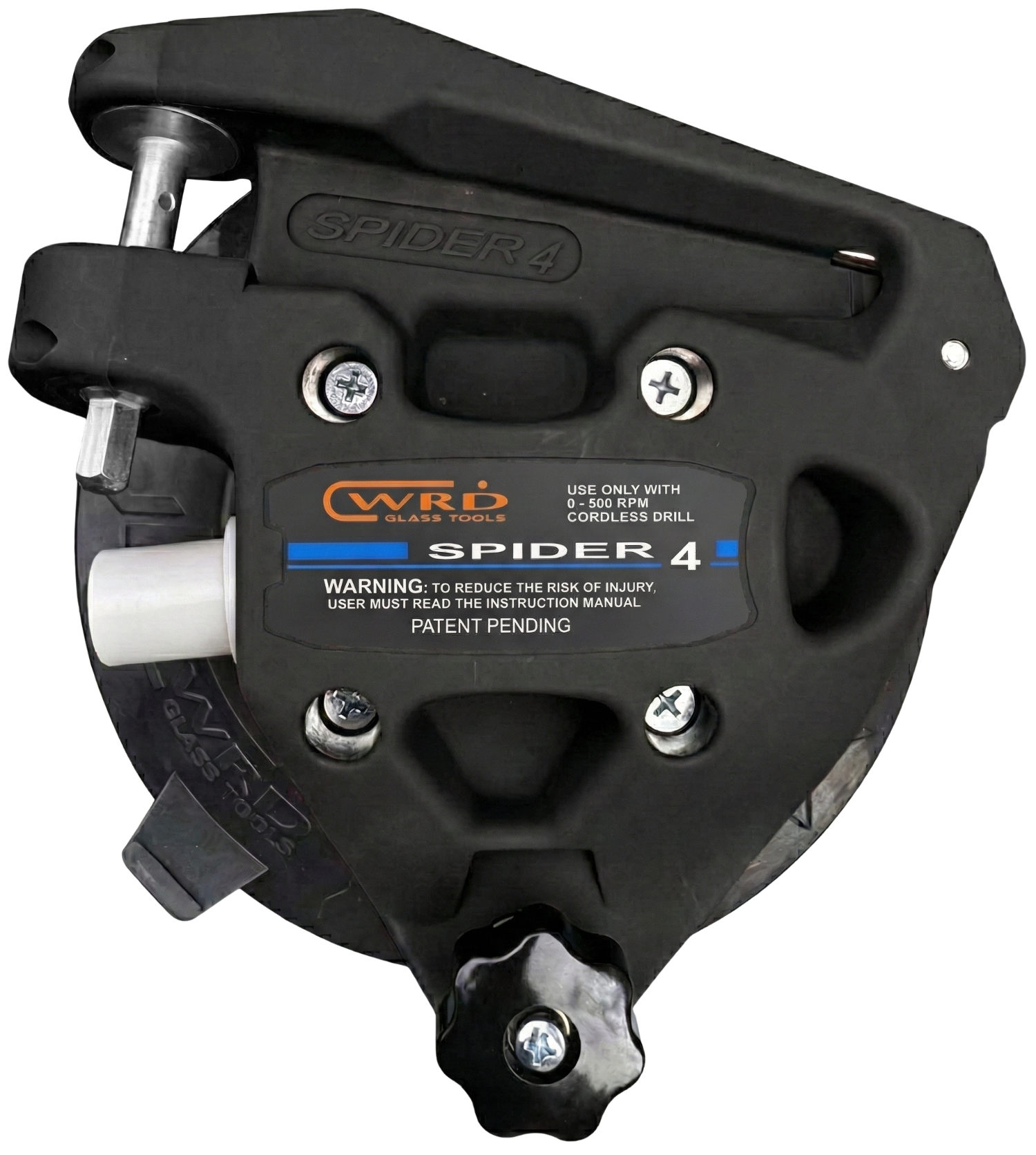

Spider 4M Cup Assembly - Black Edition
WRD-SA4M-BLKLooking for the assembly rather than another complete kit? View the individual product and its details.
Find replacement parts
Browse parts for this tool family. Check the individual part details for your model before ordering.
Around the cut
Access the glass
Prepare the opening
Set the replacement
- WRD PRO 6 Install System Manual vacuum
- WRD PRO 7E Install System Electric vacuum
Limited mounting space? Explore the 4″ Dock → Separate removal system with adhesive-pad mounting.
