Find your Spider 4M replacement part

Pick a numbered part on the tool or in the list to see exactly where it sits and order the matching replacement.

Choose a labelled part to find its replacement. Enlarge view
Spider 4M parts separated: knob lifted, SP3 pump drawn out with its red indicator ring, shaft covers and screws off, spindle lifted with bearings slid off, lower housing with roller and guide dropped, suction pad below. Spindle Bearings Pump Pad Body Guide Roller Knob
Parts shown apart for identification · remove the shaft covers to lift out the spindle and bearings.

Other listed parts

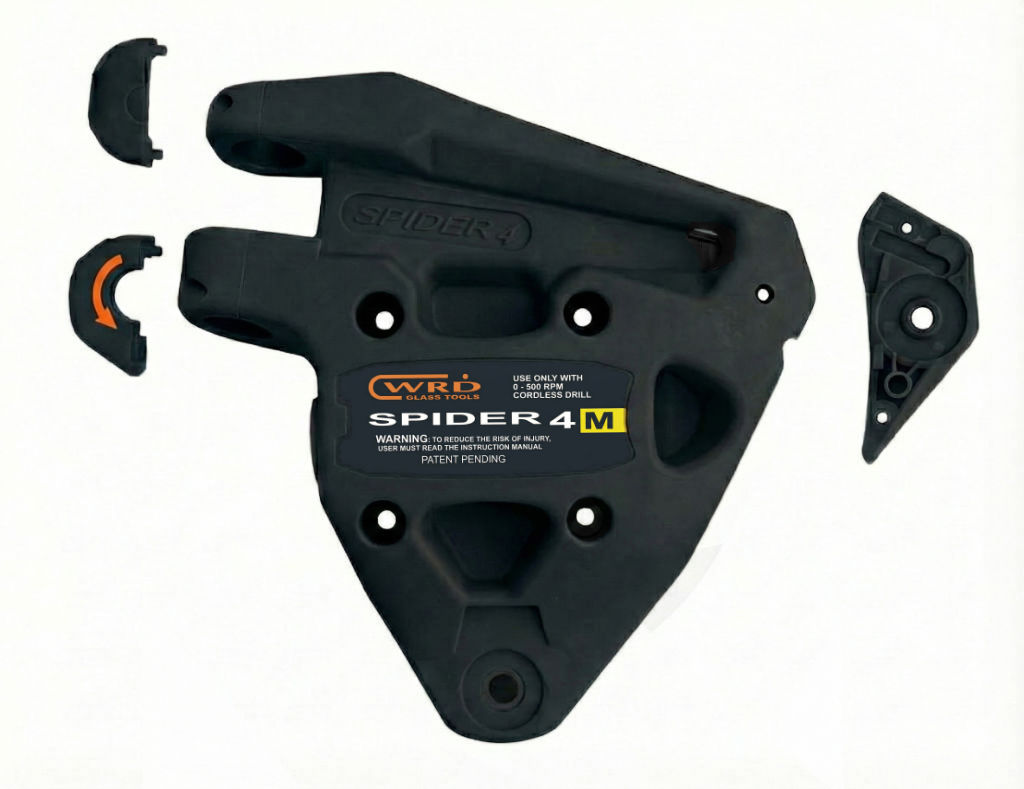

Black body option and replacement screw packs.

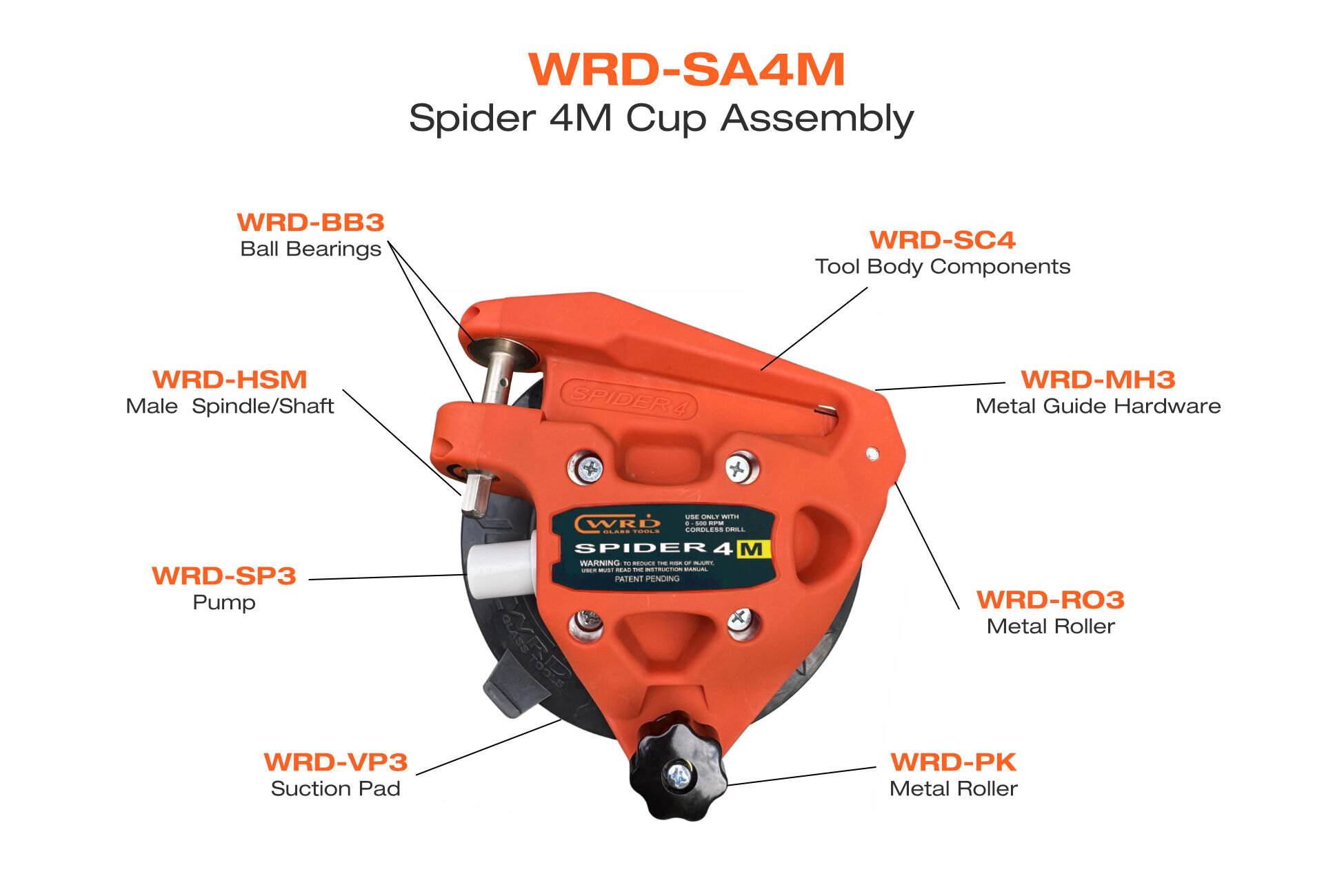

View the labelled assembly diagram Spider 4M assembly diagram with replacement-part names and SKUs

Need the complete assembly?

View the assembled tool in your chosen finish.

Spider 4M Cup Assembly Spider 4M Cup Assembly - Black Edition Browse Spider kits
