Compact glass removal
The tool pulls and holds.
You guide the cut.
Compact fiber-line removal with electric vacuum and two winding spindles.
- Electric vacuum: The ePump X monitors and tops up vacuum while you work.
- Twin-spindle layout: Two winding positions in a compact removal assembly.
- Powered or manual: Use a cordless drill or the included Bison Hand Crank.
Bobcat assembly, up close
- Winding spindles
Drive either spindle with a drill or the hand crank. Use the U Bit to hold the opposite spindle while you wind.
- ePump X
Press and hold to start the pump. It restarts as needed to maintain vacuum. The display shows vacuum pressure and battery level.
- Suction pad
The 6.5-inch pad holds the tool in position on the glass. Use the side tab to release it after the cut.
- ACT5 and Angle Driver 2.0
Set line drag with ACT5’s adjustable clutch. Use the Angle Driver 2.0 where a straight drill connection won’t fit. Both are included in 300P.
Add a handle or hook Fits the Bobcat's Quick Connect port. Sold separately.

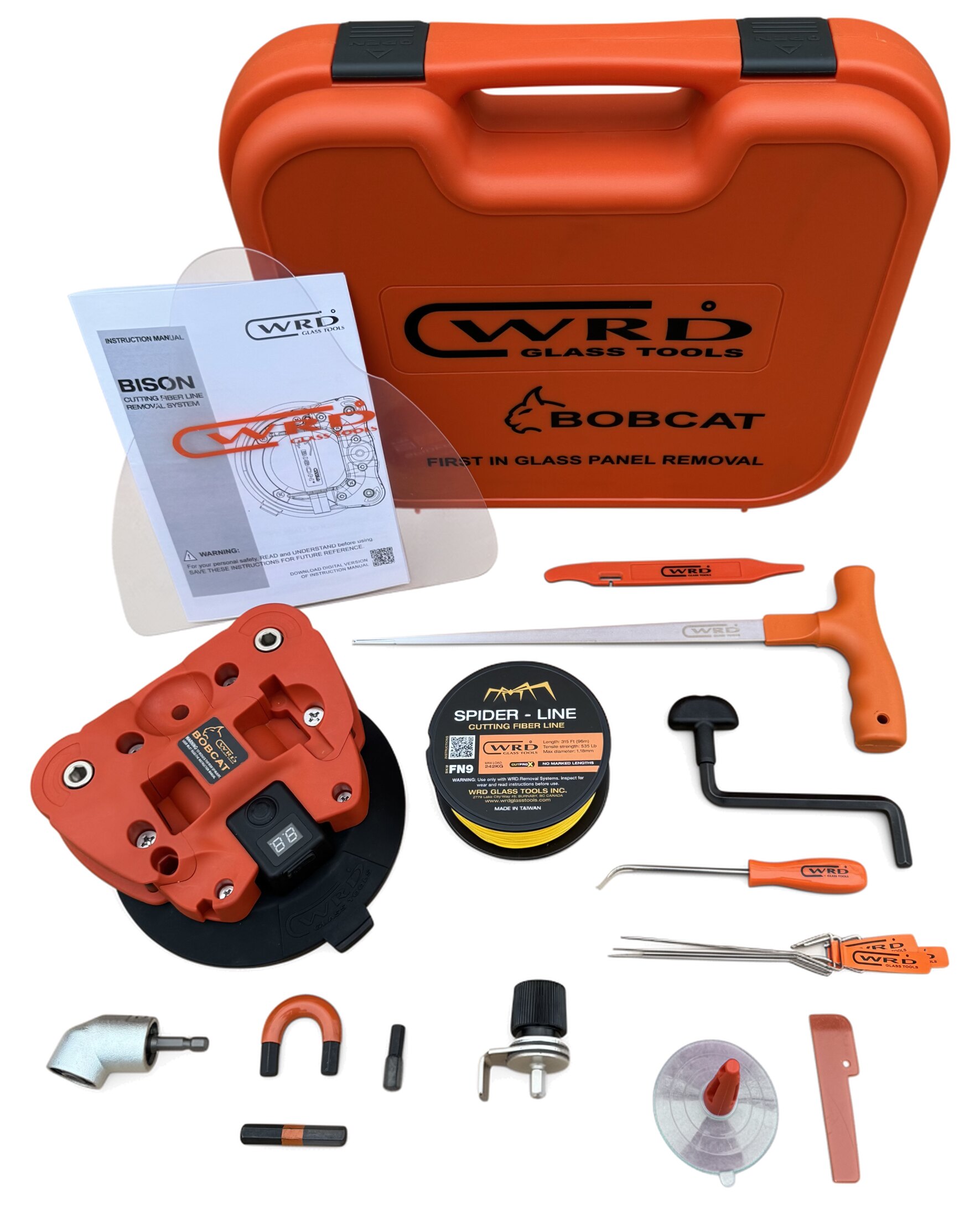

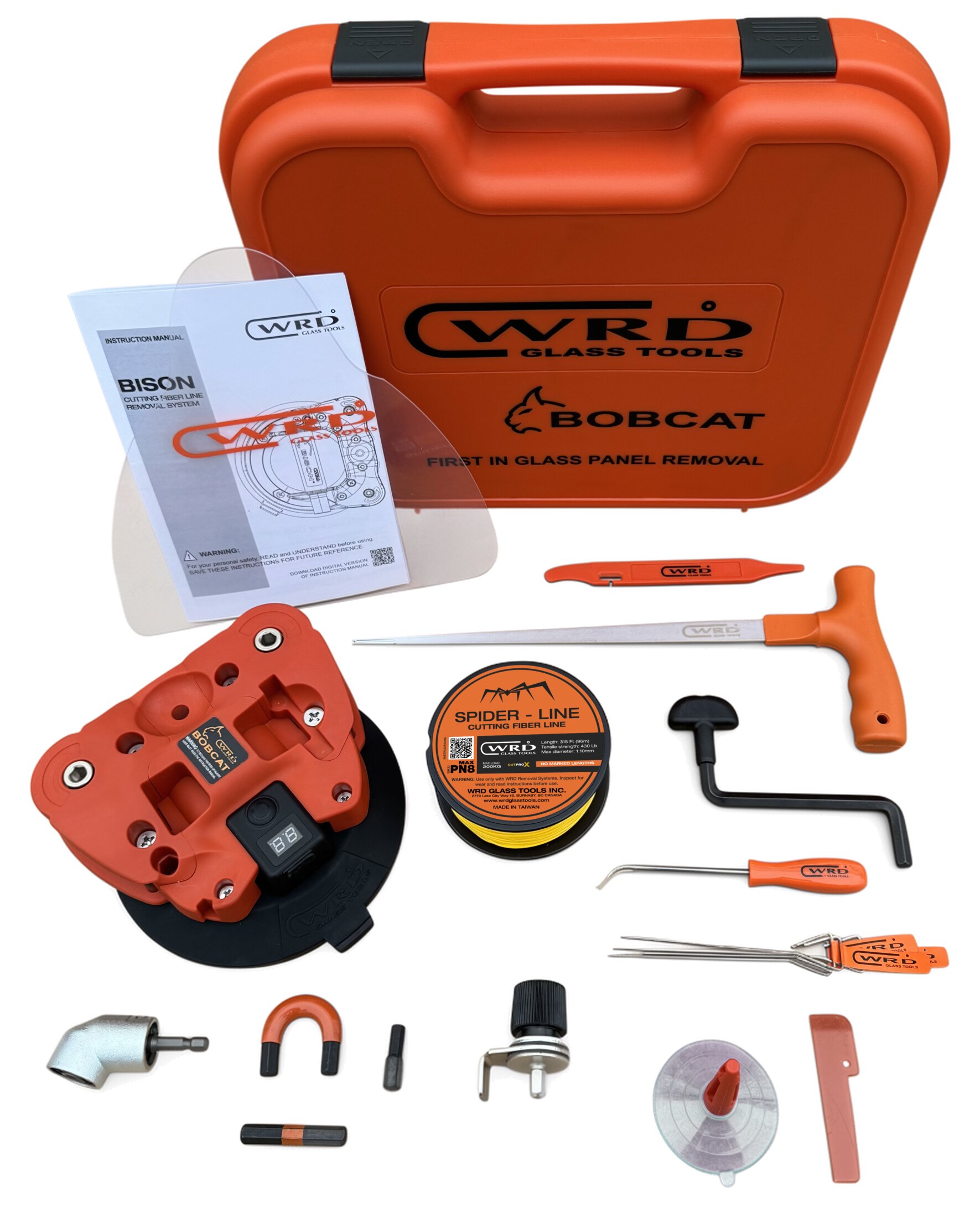

Kit Contents
-
WRD-BCA -
WRD-PN8-96 · Bundled Spool -
WRD-BNHC -
WRD-T -
WRD-DP -
WRD-LD2 -
WRD-MP -
WRD-BNB -
WRD-BNBA -
WRD-BNUB -
WRD-ISC -
WRD-LP -
WRD-BCPB -
WRD-IM
-
WRD-ACT5 -
WRD-AD2
Technical specifications
| Core assembly | Bobcat dual-spindle assembly (WRD-BCA) with integrated ePump X |
|---|---|
| Vacuum system | ePump X electric vacuum; monitors pressure and tops up automatically |
| Suction pad | 6.5-inch side-release suction pad (WRD-VP7) |
| Drive interface | 5/16-inch hex spindle connections; Bison Bit and Bison Hand Crank included |
| Spindle hold | Bison U Bit (WRD-BNUB) holds the opposite spindle while line winds |
| Included line | Spider Line PN8 MAX (96 m / 315 ft, 430 lbs tensile) |
| Standard storage | Bobcat plastic tool case (WRD-BCPB) with EVA foam insert |
| P-kit additions | Angle Driver 2.0 (WRD-AD2), Automated Clutch Tool ACT5 (WRD-ACT5) and Bit Adapter (WRD-BNBA) |
| Accessory port | |
Built-in ePump X
Explore ePump X| Battery capacity | 2,000 mAh · rechargeable |
|---|---|
| USB charging | USB-C · 5V input |
| Output voltage | 3.7V |
| Rated power | 3.5W |
| Display | Pressure in kPa · battery level P1–P9 |
| Controls | Press and hold to start the pump. Double-click to release pressure and switch off. |
| Charging | The battery indicator flashes while charging. P9 means fully charged. |
Cutting line & refills
Spider Line PN8 MAX (96m)
96 m spool · No marked lengths
Get a replacement spoolA different cutting job?
Parts & support
Find individual Bobcat components below, or open the interactive diagram to inspect each part.
- Ball bearingsWRD-BCBBSet of 2 ball bearings.
- Deflection rodsWRD-BCDRSet of 2 deflection rods.
- ePump X electric pumpWRD-EPXePump X electric vacuum pump · 2,000 mAh battery, USB-C charging.
- 6.5-inch suction padWRD-VP76.5-inch rubber pad with side-release tab.
- Spindle / shaftWRD-BCHSpindle with a 5/16-inch hex drive.
- Body componentsWRD-BCSCBody housing and winding covers.
- Spring setWRD-OBSSSpring set shared with the Orange Bat.
