Larger-panel glass removal
Built for bigger glass.
A dual-spindle fiber-line removal system for larger panels and commercial vehicles.
- Larger suction footprint: A reinforced 8.25-inch pad for larger-panel work.
- Two ways to wind: Drill or hand-crank drive; Angle Driver 2.0 and Bit Adapter included.
- Adapt to the job: Add Quick Connect handles or hooks, or choose an ePump package for electric vacuum.
Kit configuration
Color: Orange
Bison assembly, up close
- 8.25-inch suction pad
The reinforced 8.25-inch pad holds the tool on the glass. Use the side tab to release it after the cut.
- Two winding spindles
Drive either spindle with the Bison Bit or Hand Crank. Use the U Bit to hold the opposite spindle while you wind.
- Manual vacuum pump
Work the plunger to pull vacuum and secure the tool to the glass.
Add a handle or hook Fits the Bison’s Quick Connect port. Attachments sold separately.
ACT5 shown in the pump detail is optional and sold separately.

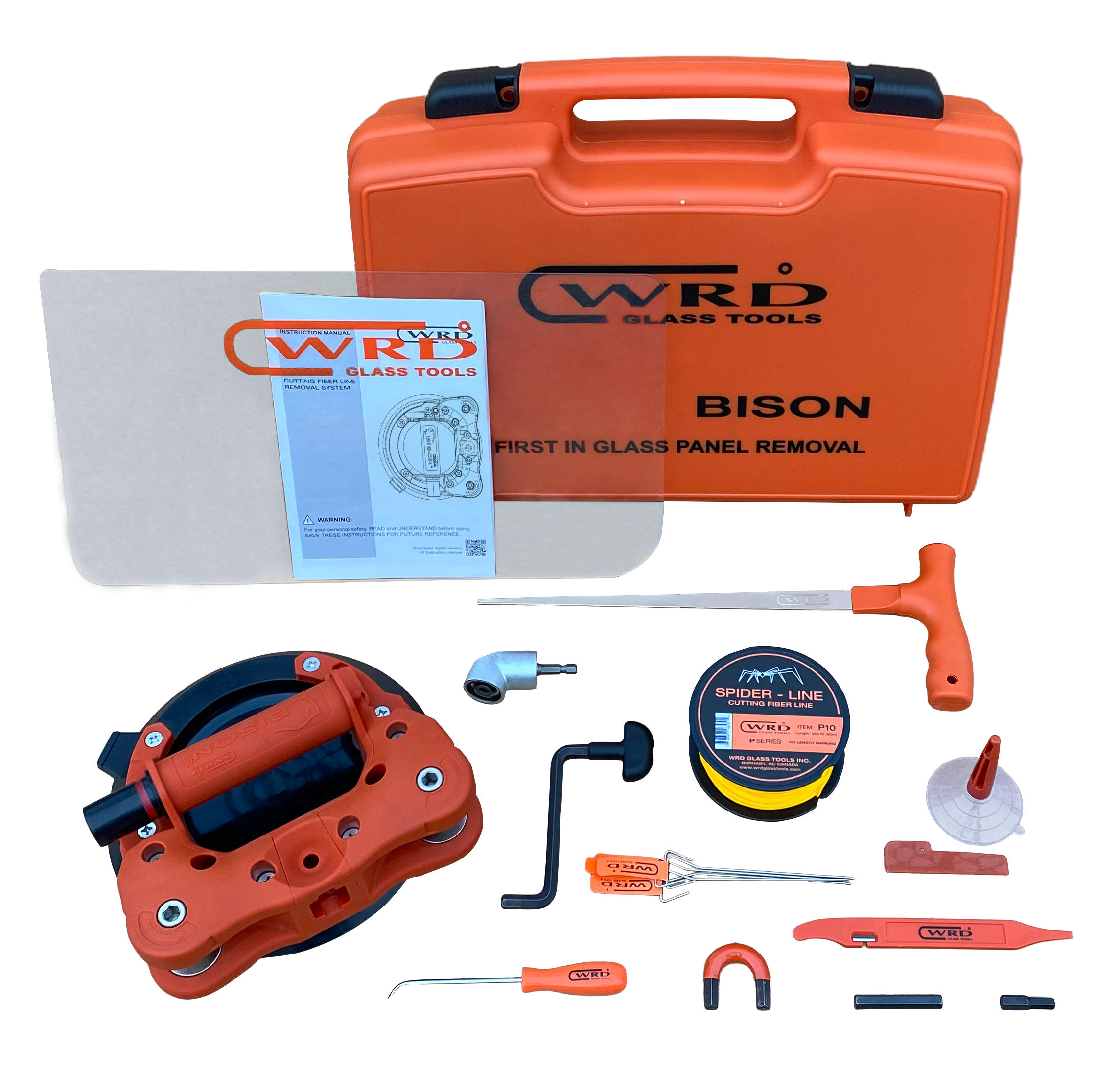

Package Manifest
14 Line items
Kit Contents
-
WRD-BNA -
WRD-P10-80 -
WRD-BNHC -
WRD-AD2 -
WRD-BNB -
WRD-BNUB -
WRD-BNPB -
WRD-T -
WRD-DPL -
WRD-LD2 -
WRD-MP -
WRD-ISC -
WRD-LP -
WRD-IM
Technical specifications
| Core assembly | Bison dual-spindle assembly · WRD-BNA |
|---|---|
| Vacuum system | Manual pump plunger · WRD-BNPP |
| Suction pad | 8.25-inch reinforced pad with side release · WRD-BNVP |
| Drive connection | 5/16-inch hex · Bison Bit and Hand Crank included |
| Angle drive | Angle Driver 2.0 + 1/4-to-5/16-inch Bit Adapter · WRD-AD2 / WRD-BNBA |
| Included cutting line | Spider Line P10 · 80 m spool |
| Storage | Bison plastic tool case with foam liner · WRD-BNPB |
| Accessory port | |
Cutting line & refills
The line supplied with this kit
Spider Line P10 (80m)
80 m spool · No marked lengths
Get a replacement spoolA different cutting job?
Parts & support
Find individual Bison components below, or open the interactive diagram to inspect each part.
- Ball bearingsWRD-BNBBSet of 2 ball bearings.
- Pump plungerWRD-BNPPComplete replacement plunger assembly.
- Suction padWRD-BNVP8.25-inch rubber pad with side-release tab.
- Body componentsWRD-BNCIncludes frame screws.
- Deflection rodsWRD-BNDRSet of 2 deflection rods.
- Spindle / shaftWRD-BNHReplacement winding spindle.
- Spring setWRD-BNSSSet of 2 replacement springs.
