One person auto glass panel setting system. Provides a safe and efficient setting solution.
- Centered around the PRO7E base cup with 7-inch WRD-VP7 cup
- Features an electric pump for superior holding power
- Includes Quick Slot mechanism for rapid attachment changes
- Highly robust design

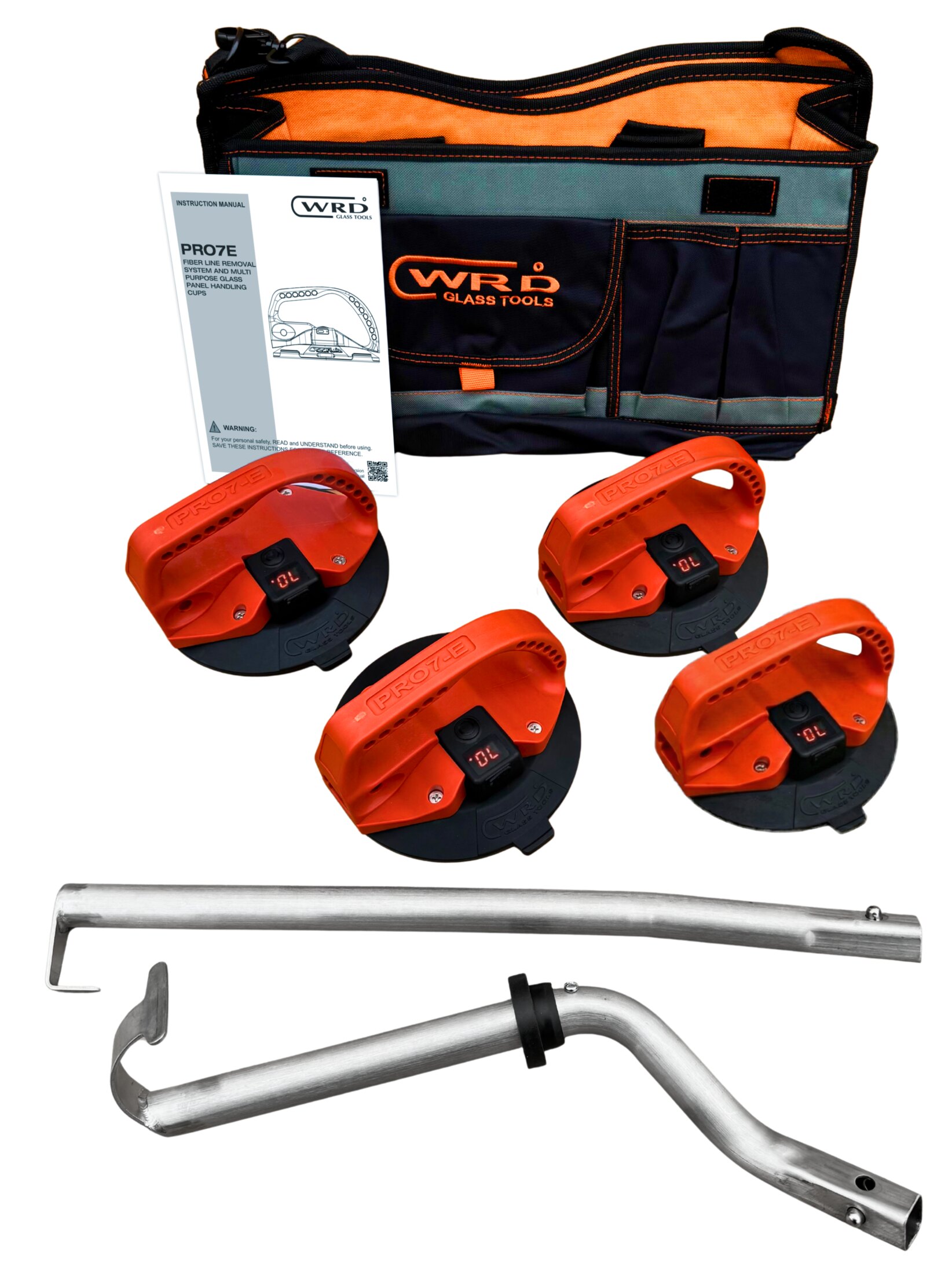

Kit Cotents:
At a glance
- Install Workflow
- 4 PRO7E cups
- Long Double Hook Reach accessory
Field-use notes
- Confirm vacuum before loading: check cup contact and pump status before positioning glass.
- Use Quick Slot deliberately: verify each attachment is locked before applying load.
- Keep movements controlled: avoid sudden shifts while the cup and hook are loaded.

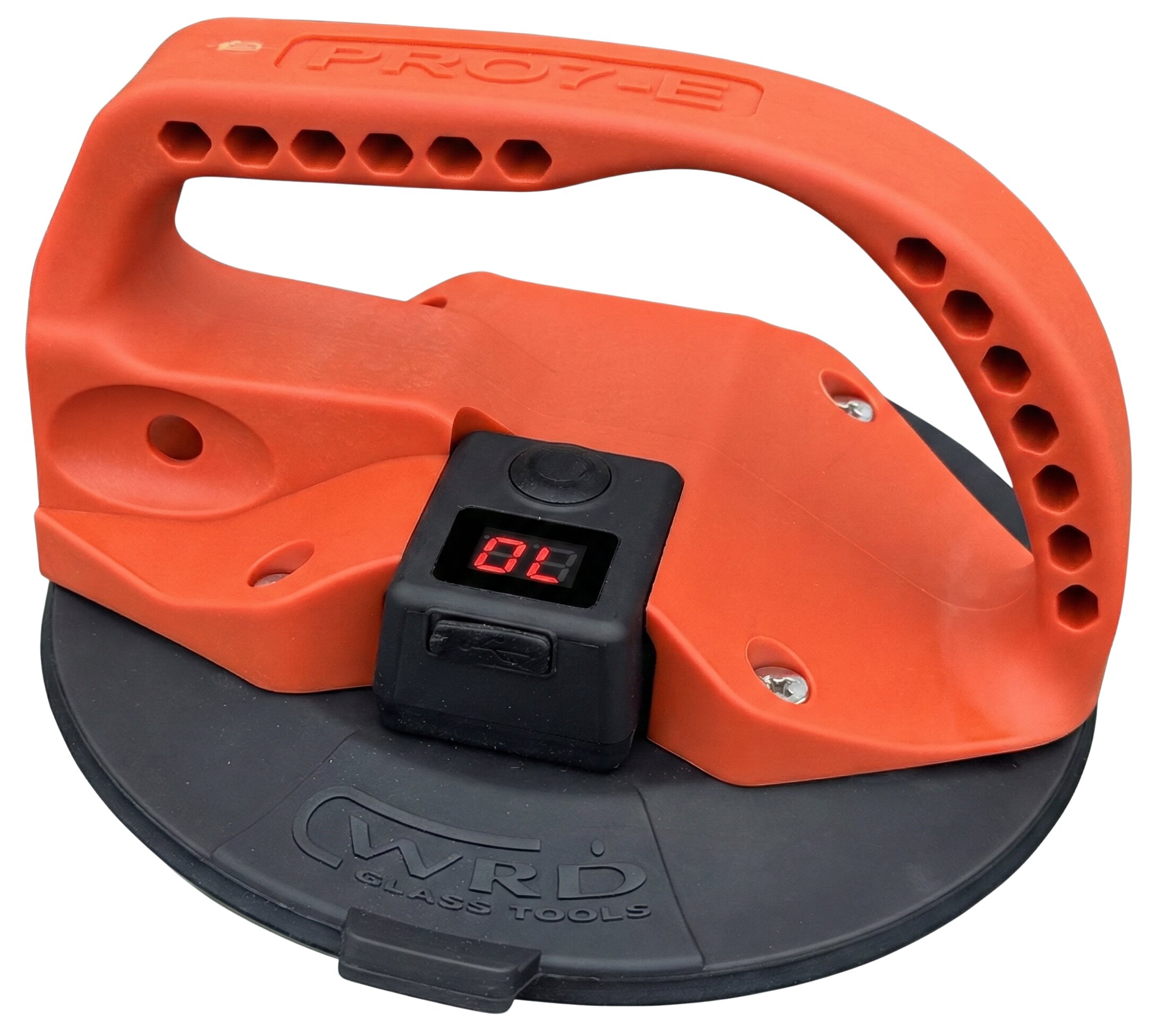

PRO7E Install Role
Four active hold points
Four PRO7E cups distribute panel support while each cup actively monitors and tops up vacuum as needed.
Longer hook reach
The included Long Double Hook provides a little more reach than the regular Double Hook for deeper or longer installation geometry.
PRO6 attachment path
Quick Slot keeps the PRO7E system compatible with the PRO6 arm and hook workflow.
Single-technician setup
The four-cup layout and extra hook reach help one technician control panel position through the set.
Technical specifications
| System role | Electric auto glass panel setting and handling |
|---|---|
| Core cups | 4 PRO7E Electric Base Handling Cups |
| Cup size | 6.5-inch WRD-VP7 cups |
| Attachment system | Quick Slot mechanism |
| Reach accessory | Long Double Hook; slightly longer than regular Double Hook |
| Storage | 17-inch Tool Tote |
