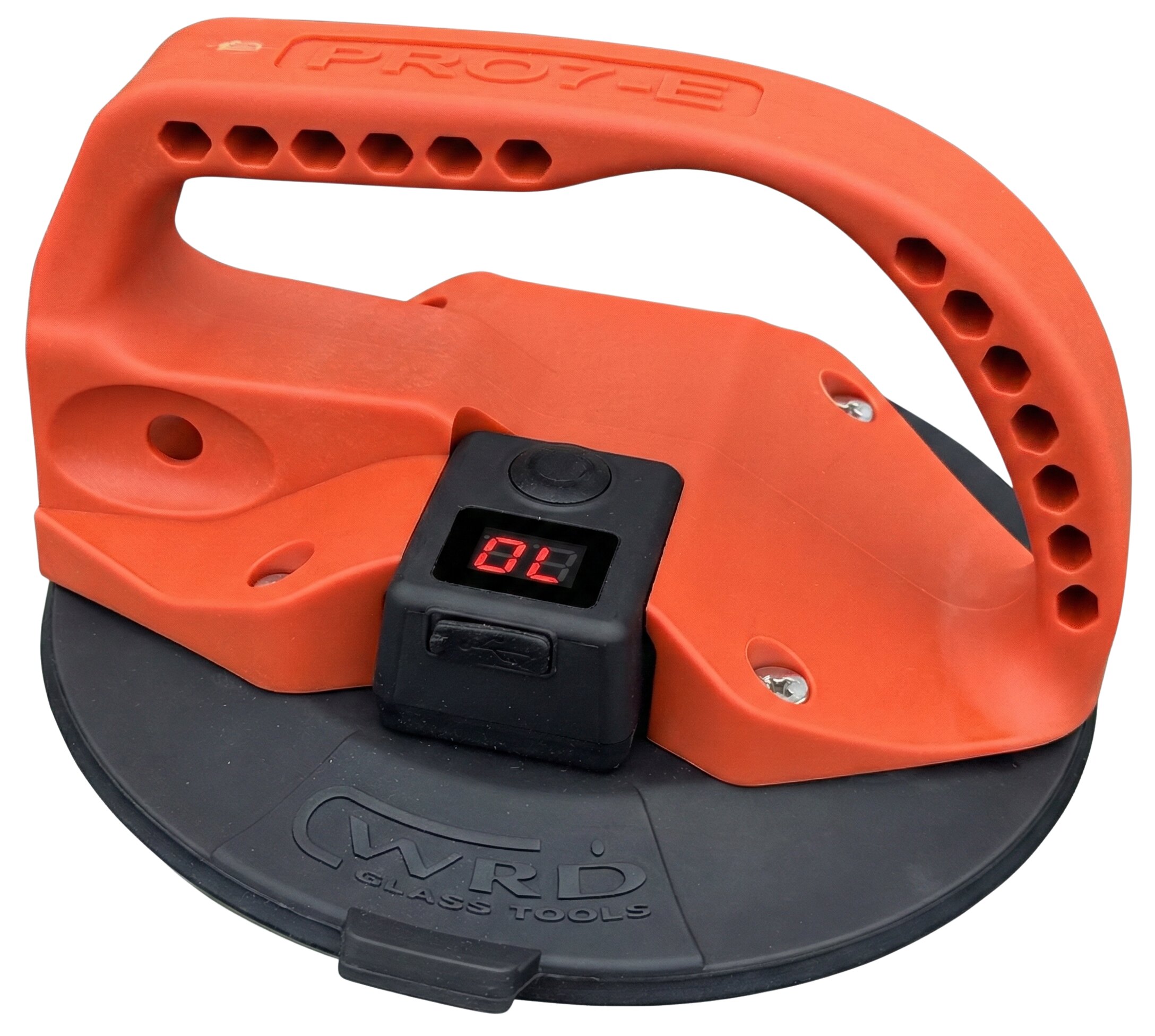

WRD-PRO7E Electric Base Handling Cup

PRO7E Electric Handling Cup

WRD PRO7E Electric Base Handling Cup

One-person glass setting

Set glass.
Skip the pumping.

Position replacement glass with an electric handling cup that keeps vacuum topped up while you work.

Port
Quick Connect PRO · Installation mount
Vacuum pump
Integrated ePump X
Suction pad
6.5-inch VP7 · side release
Supplied
One assembled cup
Where to Buy Explore the built-in pump
The PRO7E system See how PRO7E works One-person glass setting.
Electric vacuum

Built-in ePump X

EPX monitors vacuum and runs the pump again when pressure needs topping up. Its display shows vacuum pressure and battery status.

Explore ePump X
Battery capacity2,000 mAh · rechargeable
USB chargingUSB-C · 5V input
Output voltage3.7V
Rated power3.5W
DisplayPressure in kPa · battery level P1–P9

One-button control. Press and hold to start the pump. Double-click to release pressure and switch off.

The battery indicator flashes while charging. P9 means fully charged.

EPX operating instructions · pages 16–17
Build your setup

Arms & hooks

The Quick Connect port accepts these PRO6 attachments. Arms and hooks are available separately.

Extended Arm

Single-grip arm for leverage when handling glass panels.

PRO6-EA

Double Hook

Standard hook attachment for one-technician glass installation.

PRO6-DH
Cup service

Replacement parts

Find individual PRO7E components below, or open the interactive diagram to inspect each part.

PRO7E replacement-parts schematic: orange handle at upper left, 6.5-inch suction pad with its four threaded mounting nuts below, and complete ePump X electric pump separately at right. 12
Explore PRO7E parts Parts identification · Not to scale.
  1. ePump X electric pumpWRD-EPXePump X electric vacuum pump · 2,000 mAh battery, USB-C charging.
  2. 6.5-inch suction padWRD-VP76.5-inch rubber pad with four threaded mounting nuts and side-release tab.
Explore the interactive parts diagramSee parts assembled or separated, highlight a component and find its replacement.
Help identifying a part
Complete setup

Need the complete system?

PRO7E Install System

Four electric handling cups, a Long Double Hook assembly, a tool tote and an instruction sheet.

WRD-PRO7E-IS
