WRD single-spindle glass removal
Wind. Guide. Anchor.
One frame.
Spider 4M brings winding, line guidance and anchoring together in one streamlined frame. Mount it, connect your cordless drill at the side, and work the cut from a single tool.
01 / The frame
Spider 4M groups the drive, line path and anchoring options in a single D-frame, so there are fewer separate pieces in the main setup. Select a point to see what it does.
The 1/4-inch hex projects from the side of the frame for a direct drill connection.
Winding and line guidance grouped into one streamlined D-frame.
An anchoring option for stable quarter-glass mounting.
The SP3 pump sets vacuum, with more room around the plunger on 4M.
Holds the tool to the glass while you wind.
02 / Drive
A projecting 1/4-inch male-hex spindle replaces the recessed female connection of Spider 4. Your drill meets the tool at the side of the frame. The S4 Deep Socket slips over the hex to extend it for extra reach and clearance.
Use the drill’s low-speed setting. The 300P adds Angle Driver 2.0 for an angled drill connection.
03 / Anchoring
A notch cut through the frame gives Spider 4M a door-striker anchoring option, for stable mounting in quarter-glass removals and tight body openings.
Fully seat and align the frame before applying winding tension. Every kit also includes a separate anchor cup.
04 / What 4M changed
Spider 4M keeps the integrated Spider layout and revises the parts you touch every job. Compare with Spider 4
01Projecting drive in place of the recessed female hex.
02More room around the plunger for easier finger access.
03A new anchoring option built into the frame.
04Updated internal gears and bearings.
Product photographs of production Spider 4M hardware.
In the shop
Spider 4M works from inside the cabin while the anchor cup holds the line on the outside. One tool, one line path, a setup your techs repeat job after job.
Rendered illustrations of an example setup. Follow the Spider 4M instruction manual for line routing and operation.
Cutting line
Every Spider 4M kit ships with a 96 m spool of Spider Line P8 MAX. Spider 4M also runs Spider Line P6, X and P10 when the job calls for a different line.
Explore the Spider Line rangeKit selection

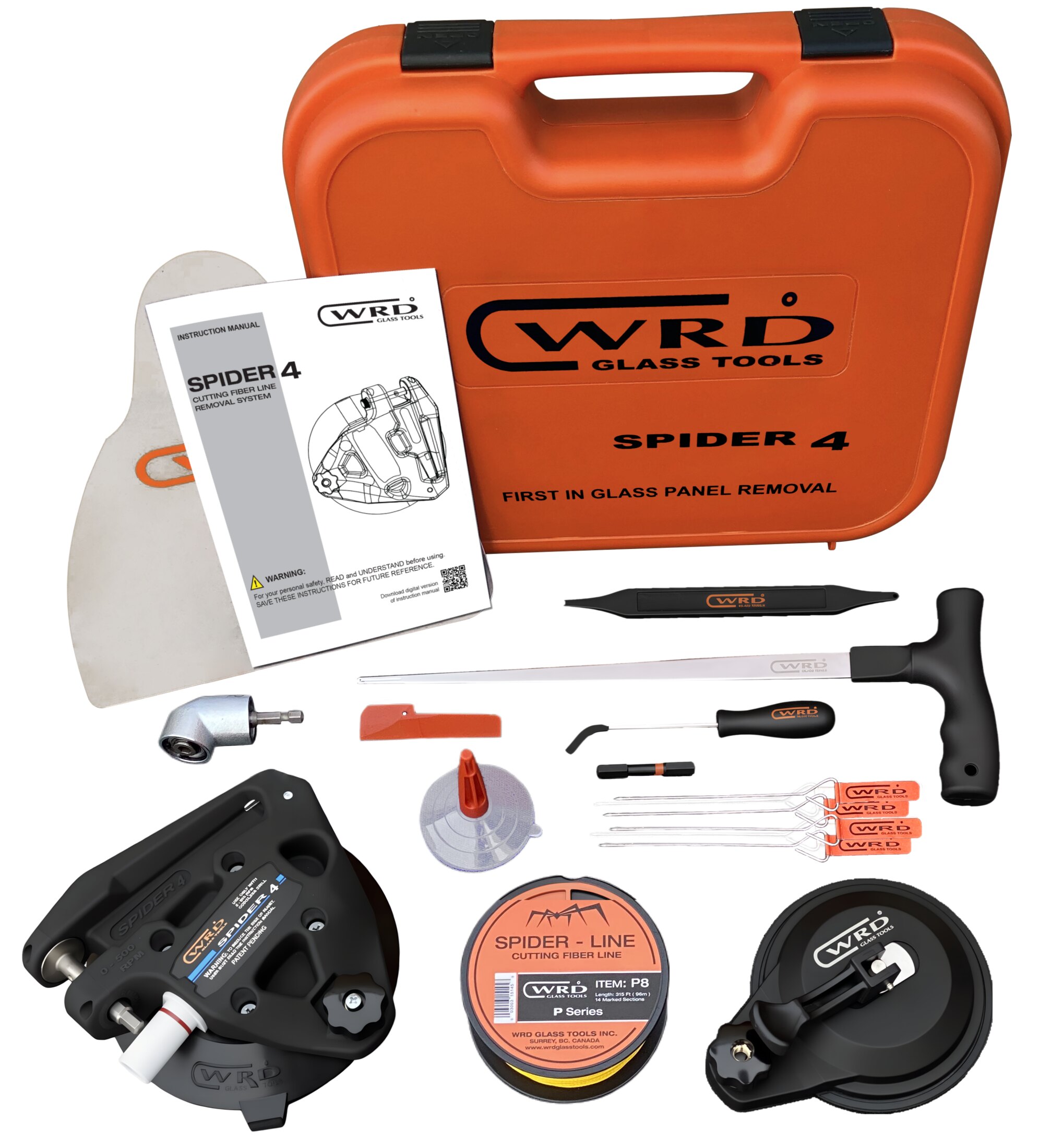

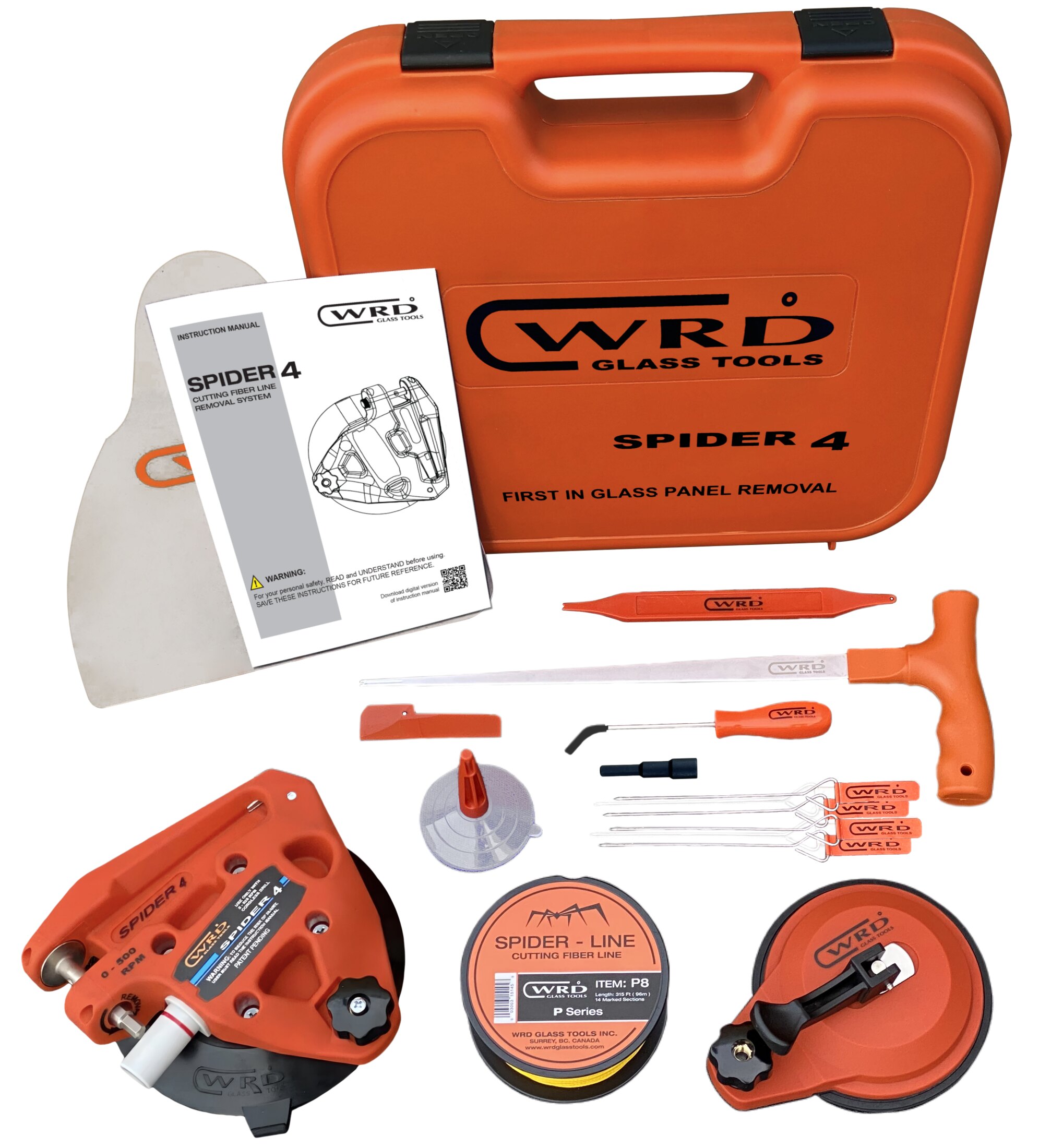

Both kits include the Spider 4M assembly, P8 MAX cutting line, anchor cup, dash protector, setup tools and case. The 300P adds Angle Driver 2.0. Drive hardware differs by edition: open the included components for the exact list. Choose Orange or Black Edition below.
The 300P difference
WRD-AD2Changes the angle of the drill connection. Included with 300P; sold separately for 300.
Every other component is the same in both packages of the same edition.
Product support
Spider 4M keeps the integrated frame and adds a projecting male-hex spindle, more clearance around the pump plunger, a door-striker notch and revised internal spindle gears and bearings.
With a cordless drill at its low-speed setting, 0–500 RPM, connected at the side of the frame. Use the drive hardware supplied with your kit and follow the instruction manual.
Angle Driver 2.0 (WRD-AD2), for an angled drill connection.
The assembly and selected hand tools have a black finish, and the drive hardware differs from the orange kits. Open the included-components list for the exact edition.
Use WRD Product Support for setup questions. Find replacement components in Spider 4M parts & assembly.
