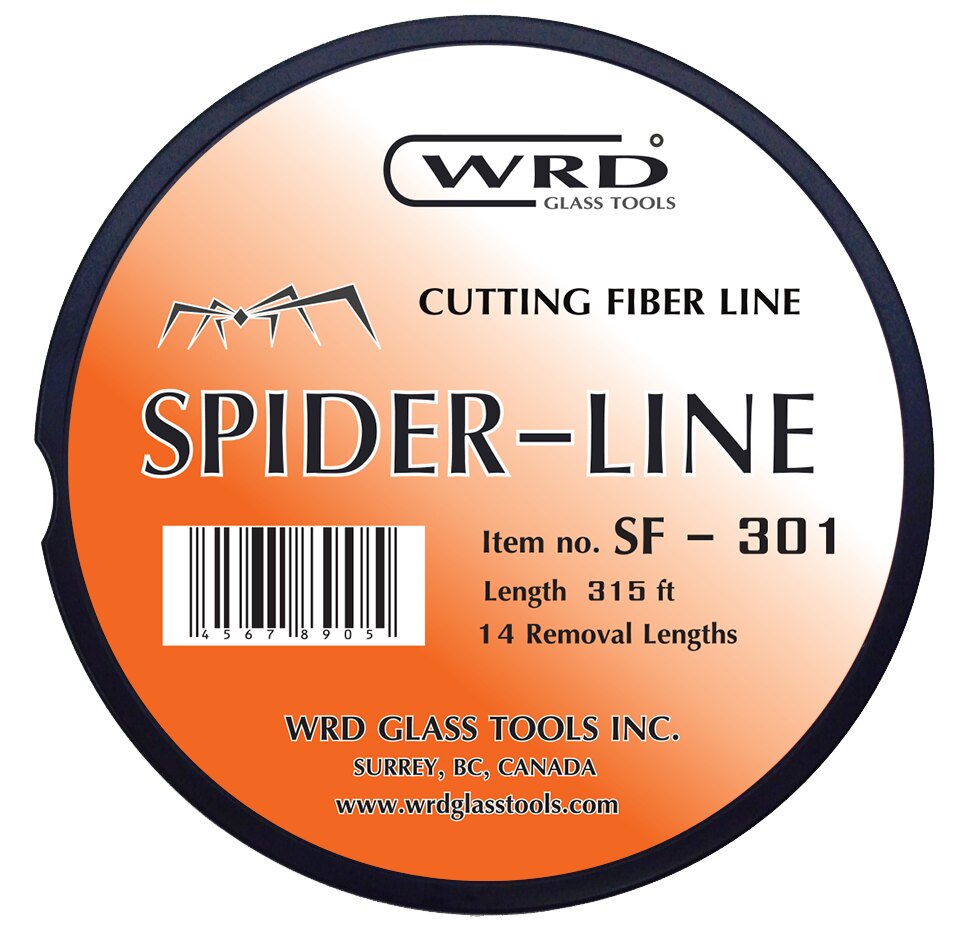

Mid gauge cutting line, good cutting ability and tensile strength, good reusability rate.
Technical Specifications:
- Up to 5 removals per length
- Tensile strength: 270 Lb
- Diameter: 0.85mm
- Flat braiding construction
- Abrasion resistance coating
- Good salvage rate
At a glance
- 270 lbs Breaking strength
- 0.85 mm (Flat) Diameter profile
- Flat clearance braid Braid geometry
Field-use notes
- Tight clearance fitment: Deploy the SF 301 series for custom vehicles, aftermarket windshields with thin gaps, or quarter-glass replacements with low body-line clearances.
- Warranty warning: Use of braided steel wire in WRD devices voids all manufacturer warranties and causes severe guide housing wear.
- Suction setup: Route the flat line close to the glass using the Install Stick (WRD-IS) notch to keep it aligned within the pinchweld track.
Field advantages
Flat low-clearance braid
Lays flat against the pinchweld channel, enabling horizontal sliding in tight tolerance gaps where round lines bind.
Good molding salvage
Designed to glide beneath weatherstripping and decorative molds without lifting, shredding, or damaging them.
Reduced friction profile
Laying flat distributes the shear force, reducing localized friction heat and avoiding Ceramic Frit scoring.
Technical specifications
| Diameter range | 0.85 mm |
|---|---|
| Braid geometry | Flat braid construction |
| Standard spool size | 96 meters (315 ft) |
| Length markings | Unmarked continuous line |
| Reusability rating | Up to 5 cuts |
| Salvage rating | Good (engineered for close-clearance panel salvage) |
