Bison Assembly – WRD Auto Glass Tools

Larger-panel fiber-line removal

Larger footprint.
Dual-spindle control.

The Bison removal assembly pairs an 8.25-inch suction pad with two winding spindles for larger panels and commercial vehicles. The manual plunger pump supplies vacuum; the 5/16-inch drive turns the spindles.

Port
Suction pad: 8.25-inch BNVP · side release
Drive interface: 5/16-inch hex
Vacuum pump: BNPP manual plunger

Finish

StandardBlack Edition

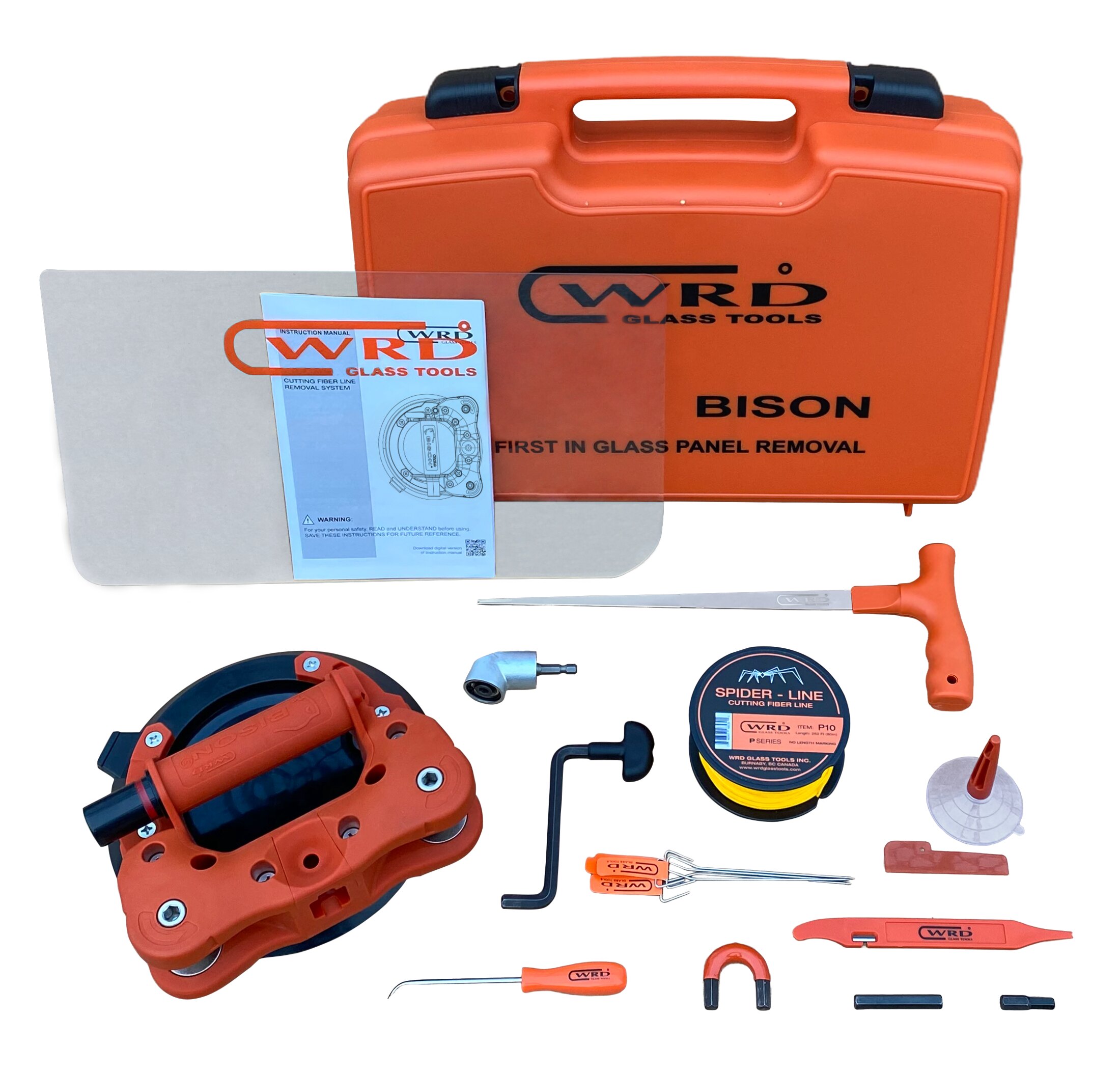

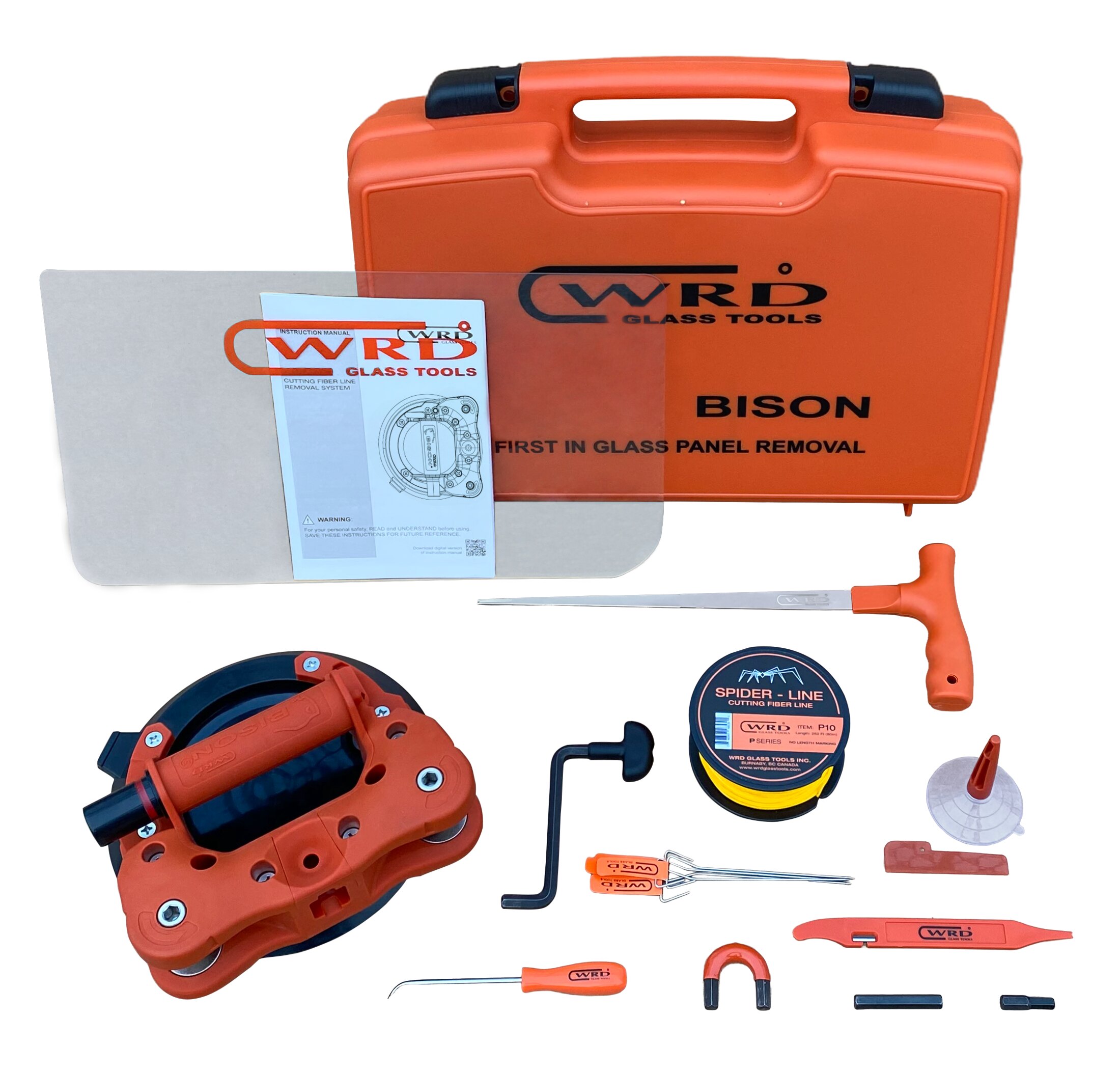

Where to Buy Explore complete Bison kits

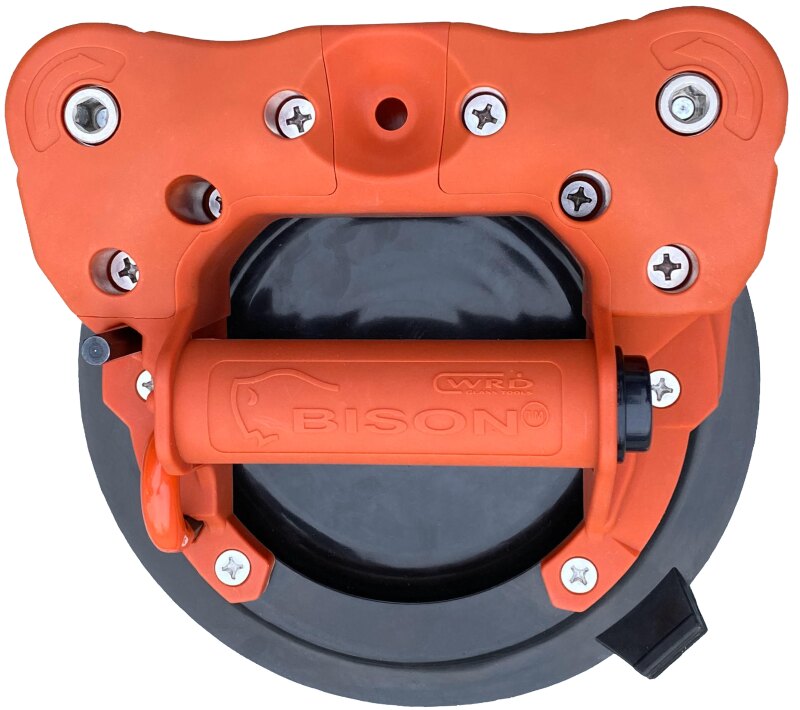

The Bison assembly

Pad, drive & vacuum

Larger suction footprint

The Bison-specific 8.25-inch pad has a side-release tab. Replacement pad and pump components are available individually.

Two winding positions

Dual spindles share the Bison frame. Choose cordless-drill or hand-crank operation through the 5/16-inch drive.

Quick Connect accessories

Handle & hook options

These attachments fit Bison’s Quick Connect port and are available separately.

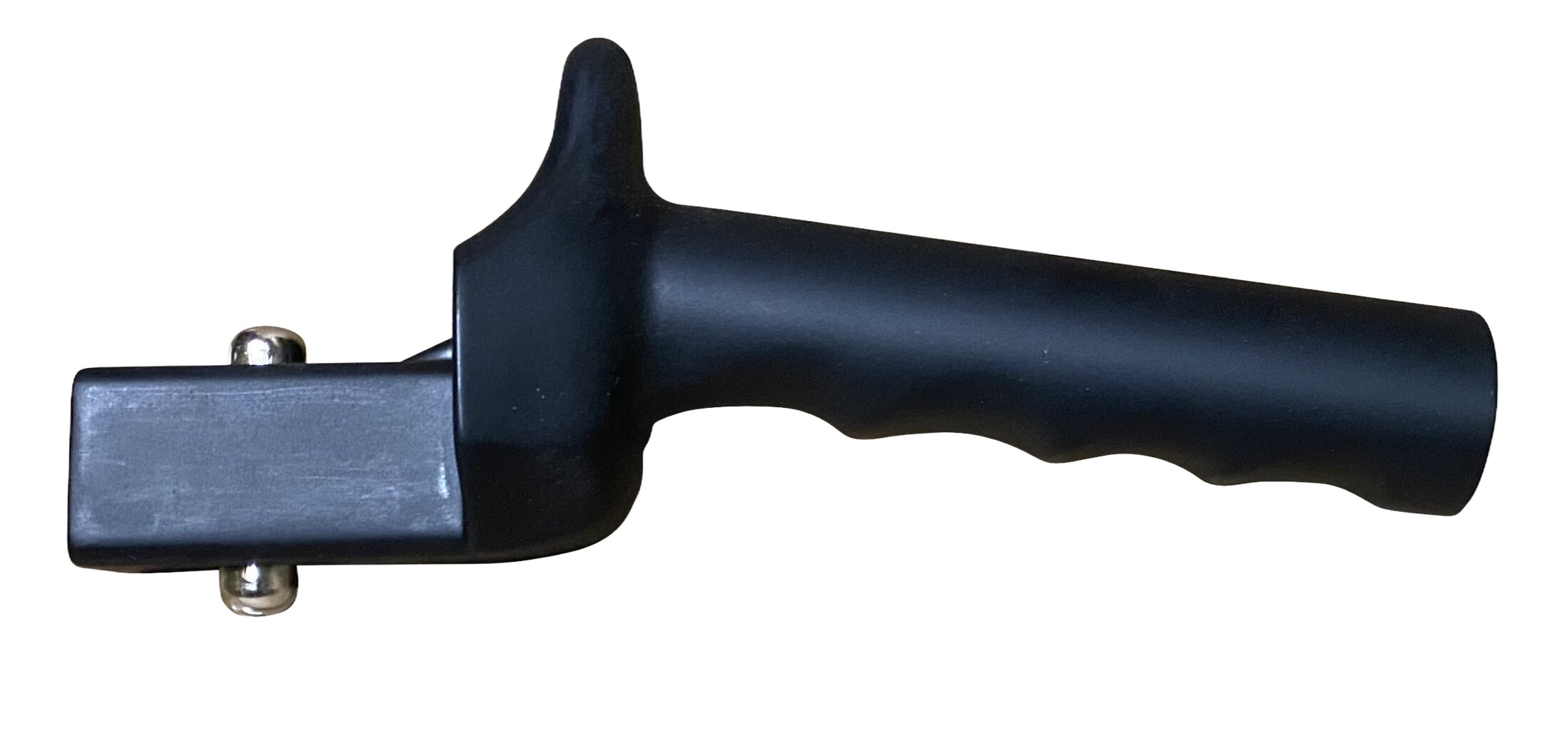

Quick Connect Handle

Plastic handle for the removal tool’s accessory port.

WRD-QCH

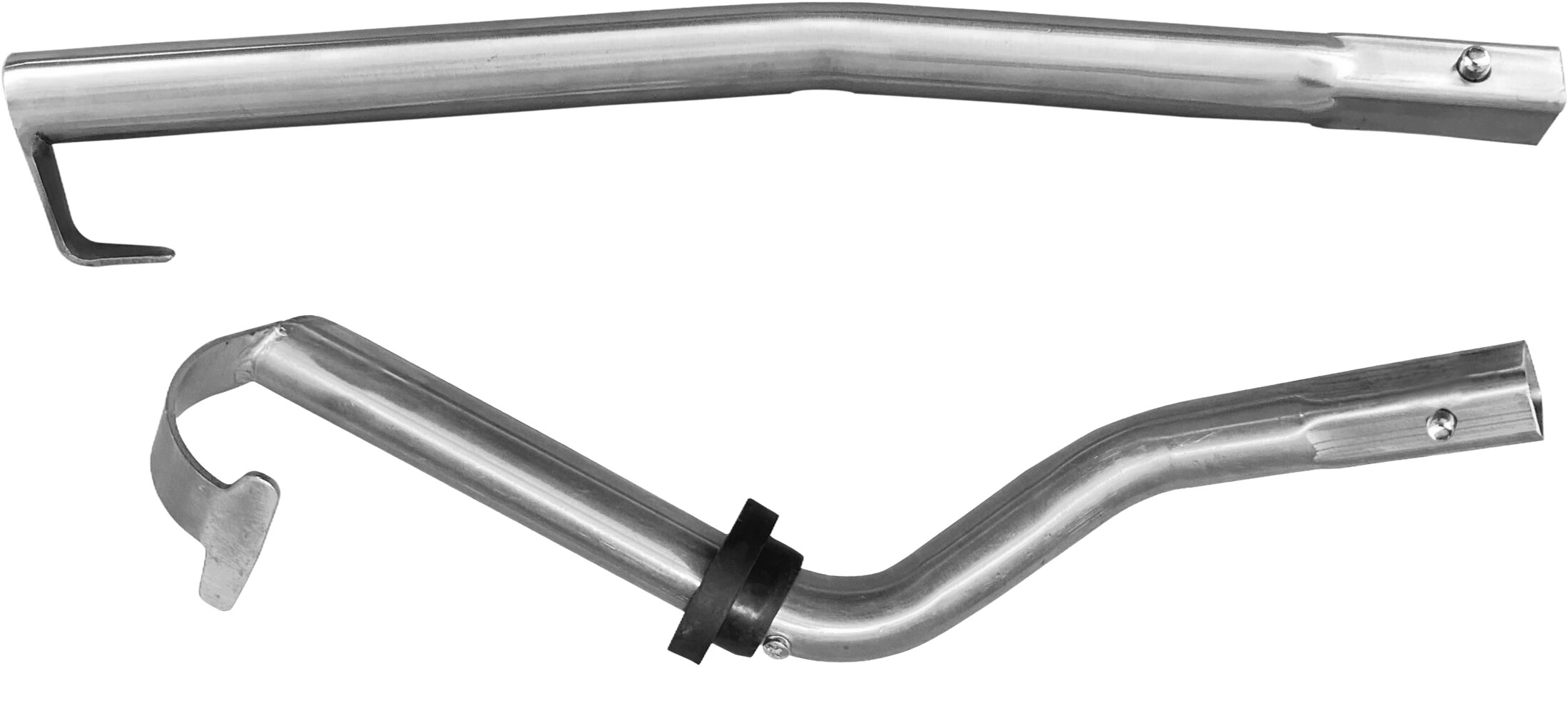

Quick Connect Double Hook

Standard metal hook for the removal tool’s accessory port.

WRD-QCDH

Long Double Hook

Longer hook option recommended for Bison, Bobcat and PRO7E.

PRO6-LDH

Cup service

Replacement parts

Bison Ball Bearings
WRD-BNBB
2pcs set of ball bearings for the WRD Bison.
Bison Body Components
WRD-BNC
Replacement Bison tool body components (includes frame screws)
Bison Spindle/Shaft
WRD-BNH
Replacement spindle for the Bison.
Bison Spring Set
WRD-BNSS
Replacement springs for Bison.
Deflection Rods
WRD-BNDR
2pcs replacement deflection rods for the Bison system.
M6 x 18mm Phillips
M6-18-1X
Spider metal roller screw Countersunk with flat top Single screw
Pump Plunger
WRD-BNPP
Replacement pump plunger for the Bison.
Side Release 8.25" Suction Pad
WRD-BNVP
8.25-inch (208mm) vacuum rubber pad with easy side release tab.
