WRD-S4-300 Orange

Spider 4 Kit 300

WRD Spider 4 Kit 300 (WRD-S4-300) - Auto glass cutting fiber line removal system
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Find replacement parts

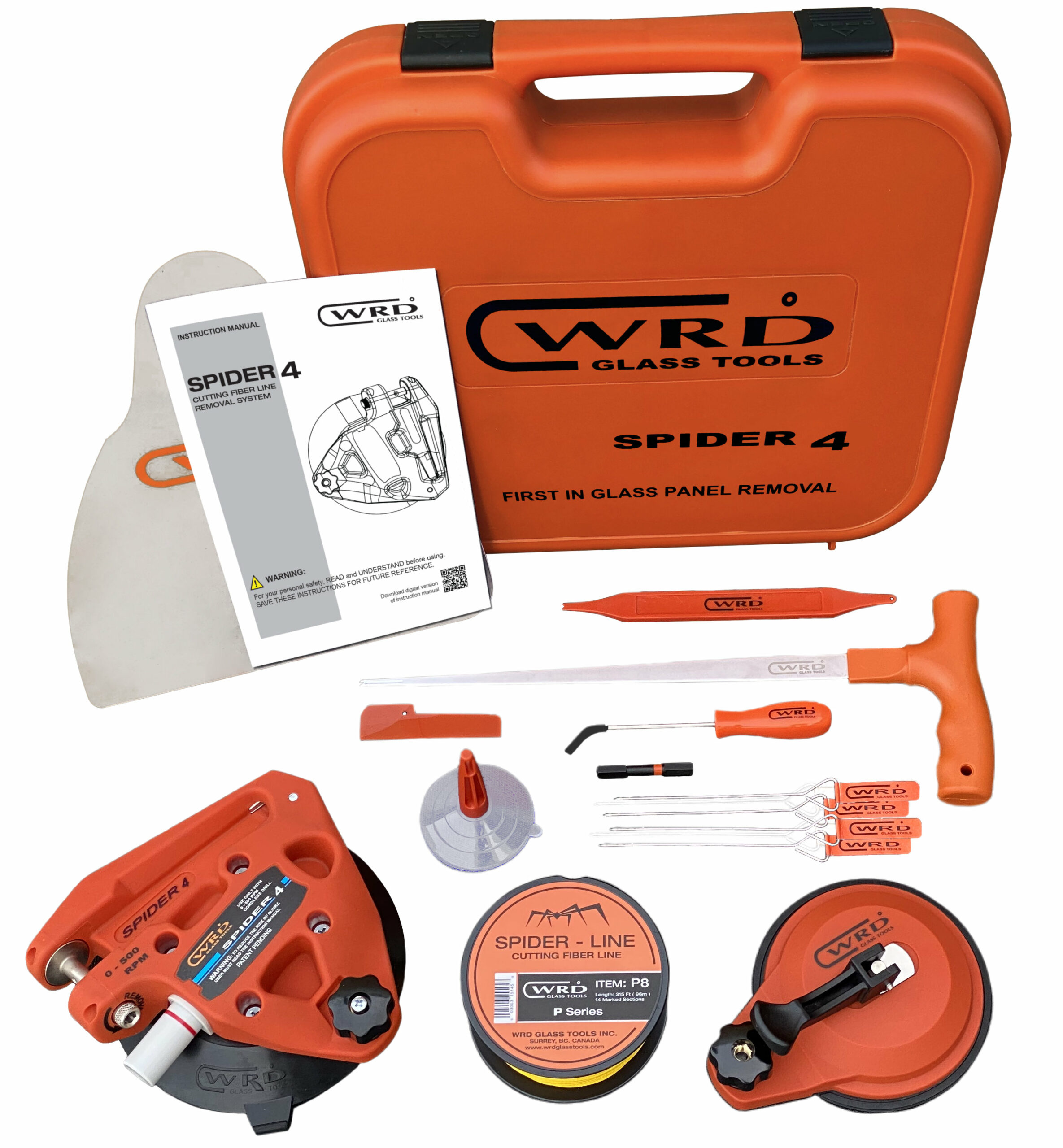

Spider 4 fiber-line removal kit with winding and anchoring in a single streamlined frame for repeatable shop work.

  • Streamlined frame: Winding and anchoring handled in one optimized frame, with cordless drill operation via side connection.
  • Optimized spindle angle: Cup assembly geometry tuned for controlled line pulls at the glass.
  • Complete line-routing set: Anchor cup, threader, pick tool and install stick for pushing, retrieving and guiding line.
  • Base 300 package: Includes S4 Bit and 96 m of P8 MAX line; Angle Driver 2.0 sold separately.
Kit configuration
300Without angle driver 300PWith Angle Driver 2.0
Color: Orange
Orange Black Edition
Where to Buy
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Capabilities

Spider 4 Role

Streamlined frame

Streamlined frame

Winding and anchoring in a single frame, no separate repositioning step.

Optimized spindle angle

Optimized spindle angle

Cup assembly geometry tuned for controlled line pulls.

P8 cutting line

P8 cutting line

96 m of P8 MAX line for everyday removal workflows.

300 selection

300 selection

Base Spider 4 kit without Angle Driver 2.0.

Package Manifest

Kit Contents

12 Line items
Specifications

Technical specifications

Core system Spider 4 fiber-line removal kit
Drive method Cordless drill or hand crank with S4 Bit
Included line Spider Line P8 MAX (96 m)
Anchoring Spider 4 cup assembly plus WRD-A3 Anchor Cup
Drive accessory Angle Driver 2.0 compatible; sold separately
Consumables

Cutting lines

Compare cutting lines →

Choose cutting line for the glass and urethane you are working with. Use the line guide to compare the range.

Included in this kit Spider Line P8 MAX (96m)

P6 0.65 mm 279 lb View line → X 0.85 mm 371 lb View line → P8 MAX 0.85 mm 365 lb Included line → FN9 1.05 mm 515 lb View line → P10 1.20 mm 468 lb View line →
Field Guidance

Field-use notes

  • Use smooth drill torque: avoid impact mode and shock loading.
  • Keep line direction controlled: use the anchor cup to manage line path and tension.
  • Verify drive engagement: seat the S4 Bit fully before loading the spindle.
Keep your tool working

Parts & support

Assembly available separately

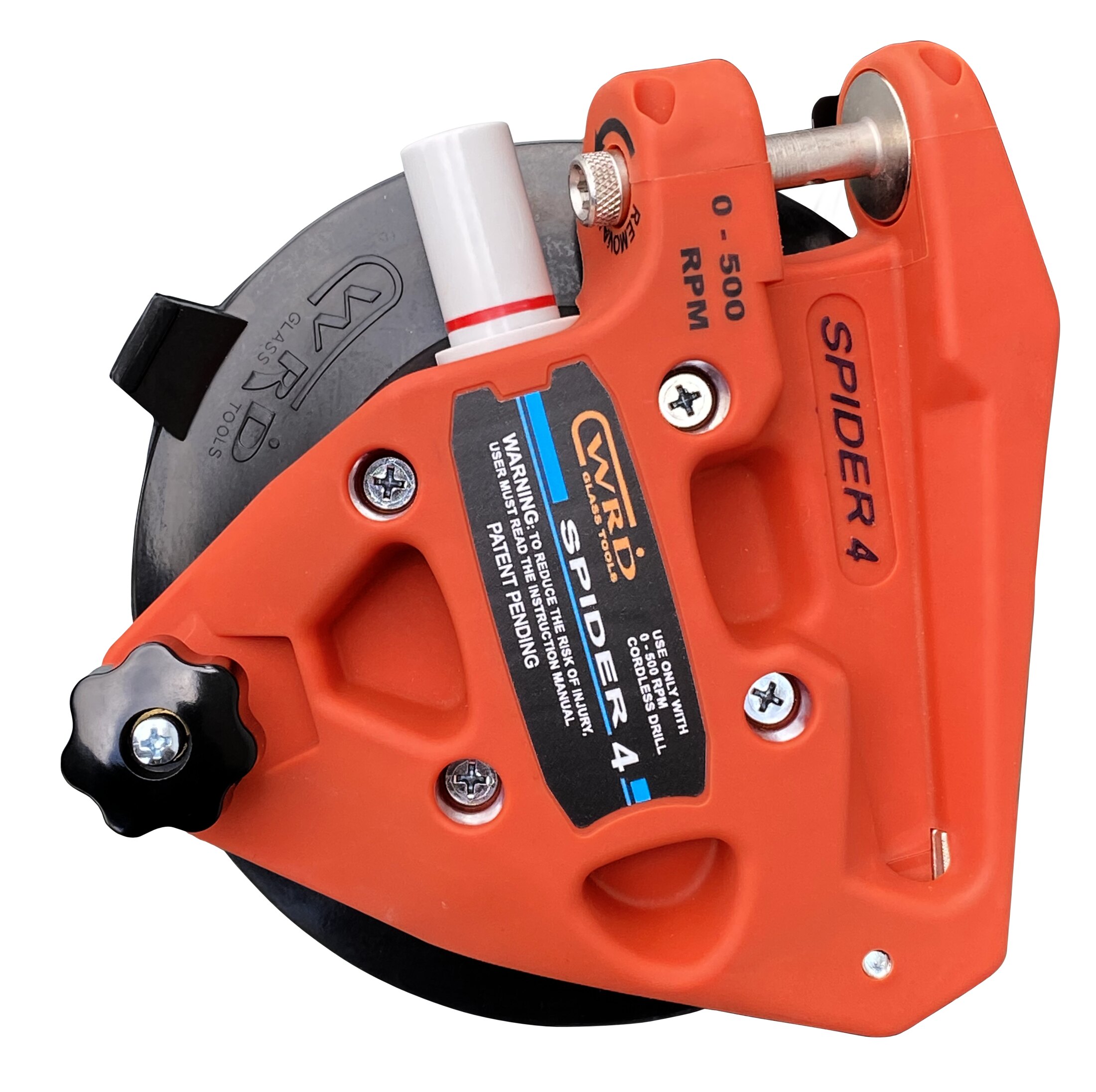

Spider 4 Cup Assembly

WRD-SA4

Looking for the assembly rather than another complete kit? View the individual product and its details.

Find replacement parts

Browse parts for this tool family. Check the individual part details for your model before ordering.

Need help identifying a part? →
