Spider 4 fiber-line removal kit with winding and anchoring in a single streamlined frame for repeatable shop work.
- Streamlined frame: Winding and anchoring handled in one optimized frame, with cordless drill operation via side connection.
- Optimized spindle angle: Cup assembly geometry tuned for controlled line pulls at the glass.

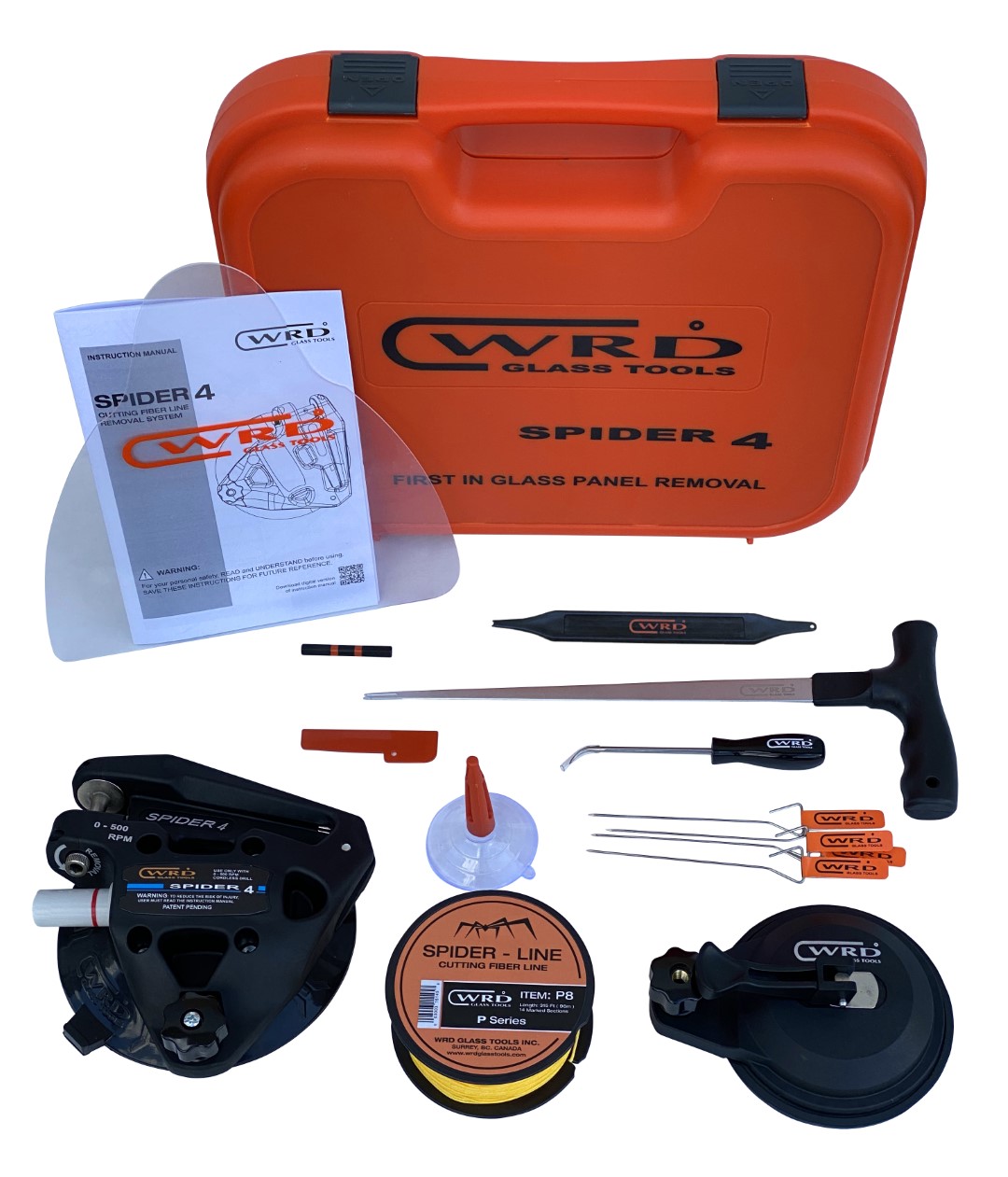

- Complete line-routing set: Anchor cup, threader, pick tool and install stick for pushing, retrieving and guiding line.
- Base 300 package: Includes S4 Bit and 96 m of P8 MAX line; Angle Driver 2.0 sold separately.
Kit configuration
Color: Black Edition
Technical specifications
| Core system | Spider 4 fiber-line removal kit |
|---|---|
| Drive method | Cordless drill or hand crank with S4 Bit |
| Included line | Spider Line P8 MAX (96 m) |
| Anchoring | Spider 4 cup assembly plus WRD-A3 Anchor Cup |
| Drive accessory | Angle Driver 2.0 compatible; sold separately |
Consumables
Compare cutting lines →
Cutting lines
Choose cutting line for the glass and urethane you are working with. Use the line guide to compare the range.
Field-use notes
- Use smooth drill torque: avoid impact mode and shock loading.
- Keep line direction controlled: use the anchor cup to manage line path and tension.
- Verify drive engagement: seat the S4 Bit fully before loading the spindle.
Parts & support
Assembly available separately

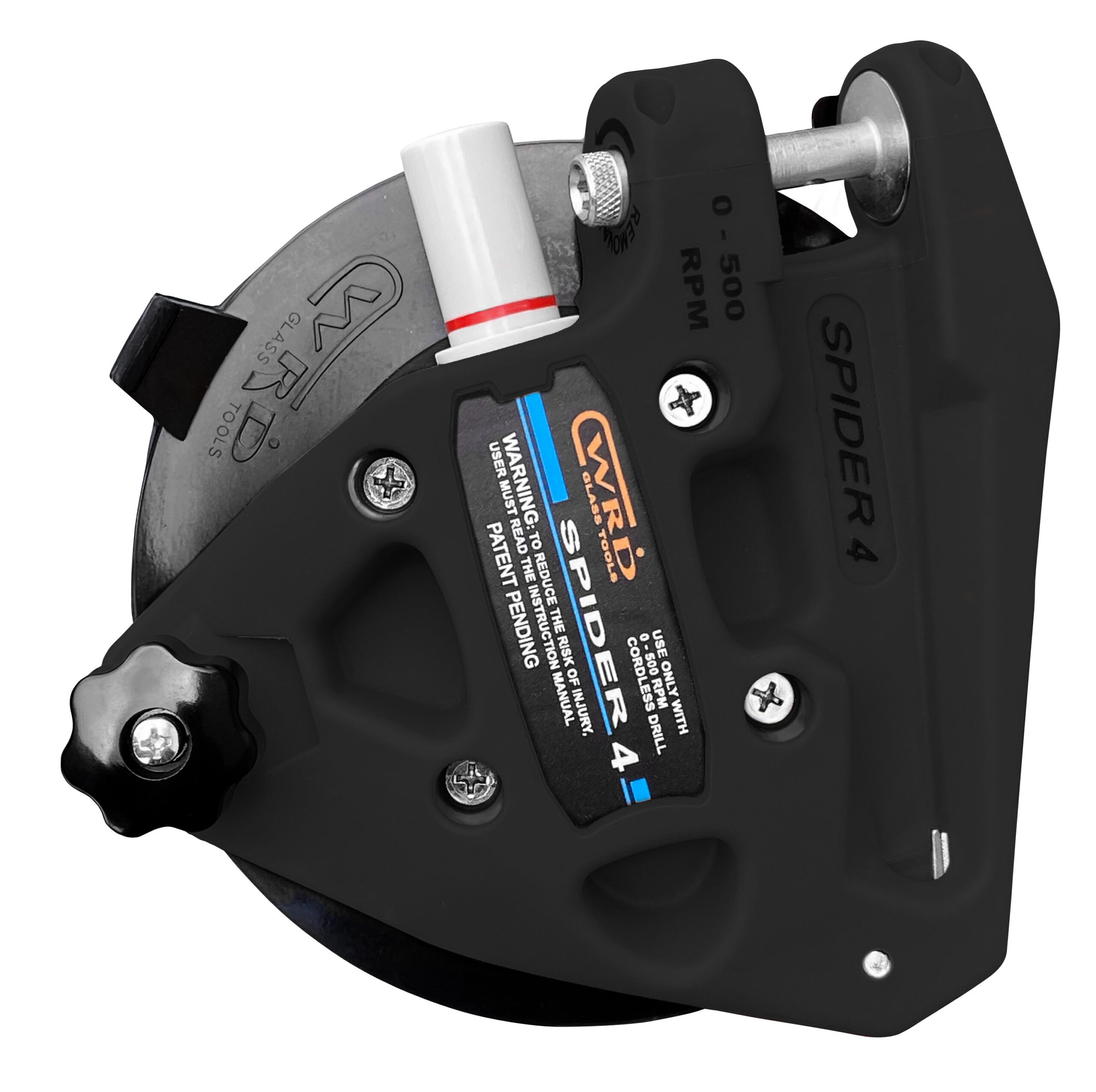

Spider 4 Cup Assembly - Black Edition
WRD-SA4-BLKLooking for the assembly rather than another complete kit? View the individual product and its details.
Find replacement parts
Browse parts for this tool family. Check the individual part details for your model before ordering.
