WRD-OB-300W-BLK Black Edition

Black Bat Kit 300W

WRD Black Bat Kit 300W (WRD-OB-300W-BLK) - Limited edition dual spindle auto glass removal kit
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Find replacement parts

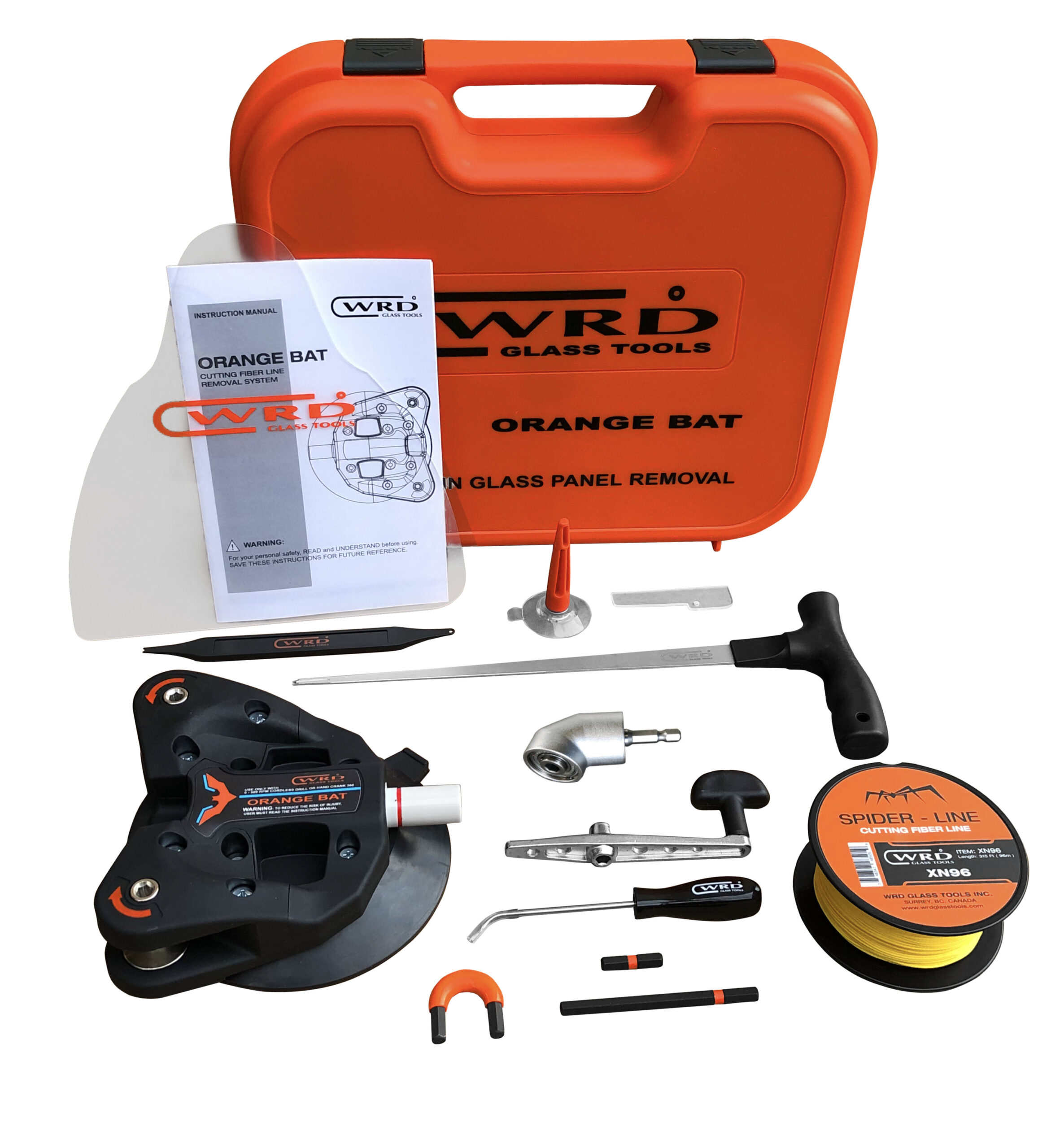

A WRD fiber-line kit built around the original Orange Bat dual-spindle assembly, PN8 line, hand-crank control, and AD2 for low-clearance powered drive.

  • Dual-spindle assembly: Two spindle positions support line-direction changes through the cut.
  • Drill or hand crank: Top connection accepts cordless drill or Hand Crank 360 operation.
  • Angle Driver 2.0 included: Redirects drill power when straight drill access is limited.
  • Flexible setup: Adapts to varied vehicle geometry, repositioning and tight access.
Kit configuration
300KWithout angle driver 300WWith Angle Driver 2.0
Color: Black Edition
Orange Black Edition
Where to Buy
The Orange Bat system See how Orange Bat works The original Orange Bat.
Datasheet PDF
Engineered in Canada · 1-Year Warranty
Specifications

Technical specifications

Core system Original Orange Bat dual-spindle fiber-line removal kit
Drive method Cordless drill (with or without Angle Driver 2.0) or Hand Crank 360
Included line Spider Line PN8 (96 m)
Best fit Mobile work, varied geometry, quarter-glass, and tight access
Drive accessory Angle Driver 2.0 included
Consumables

Cutting lines

Compare cutting lines →

Choose cutting line for the glass and urethane you are working with. Use the line guide to compare the range.

P6 0.65 mm 279 lb View line → X 0.85 mm 371 lb View line → P8 MAX 0.85 mm 365 lb View line → PN8 MAX 0.80 mm 430 lb Included line → FN9 1.05 mm 515 lb View line → P10 1.20 mm 468 lb View line →
Field Guidance

Field-use notes

  • Use smooth drill torque: do not use impact mode with Angle Driver 2.0.
  • Keep the line close: monitor line angle through corners.
  • Switch to hand control: use Hand Crank 360 when tactile feedback matters more than speed.
Keep your tool working

Parts & support

Find individual Orange Bat components below, or open the interactive diagram to inspect each part.

Orange Bat replacement-parts schematic: body and suction pad at left; bearings, spindle, manual suction pump and spring strips arranged separately at right. 12345
Explore Orange Bat parts Orange finish shown · Not to scale.
  1. SP3 suction pumpWRD-SP3Manual plunger pump with the red vacuum indicator.
  2. 6-inch suction padWRD-VP36-inch rubber pad with side-release tab.
  3. Ball bearingsWRD-OBBBUpper and lower spindle bearings.
  4. Spindle / shaftWRD-OBHWinding spindle · the tool uses two.
  5. Spring setWRD-OBSSFlat spring strips beside each spindle.
Explore the interactive parts diagramSee parts assembled or separated, highlight a component and find its replacement.
Complete Orange Bat assembly Help identifying a part
